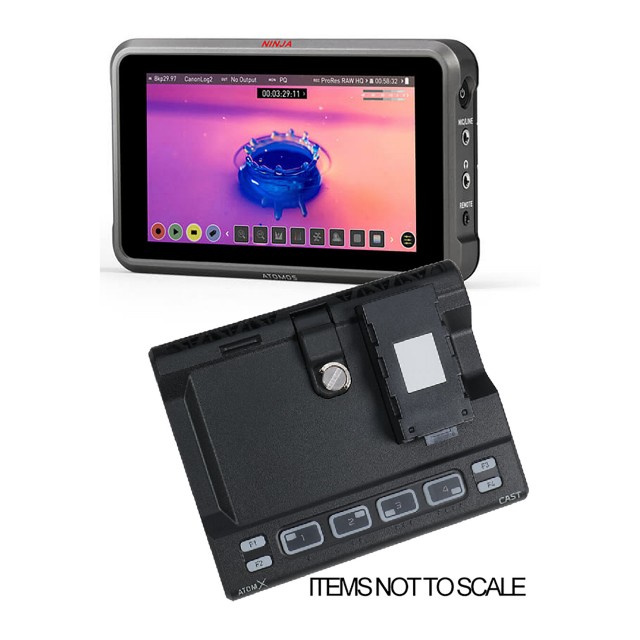

Atomos Atomos Ninja V+ 5 inch Monitor Recorder with AtomX Cast
Enlarge

Product Description

Atomos Ninja V+ 5 inch Monitor Recorder with AtomX Cast Atomos Ninja V is an HDR HDMI Monitor-Recorder that brings all the award-winning features Atomos are renowned for in their 7" Flame and Inferno series monitor-recorders to an all-new compact and lightweight 5" form factor. Perfect for DSLR's,... read more

Atomos Ninja V+ 5 inch Monitor Recorder with AtomX Cast

Atomos Ninja V is an HDR HDMI Monitor-Recorder that brings all the award-winning features Atomos are renowned for in their 7" Flame and Inferno series monitor-recorders to an all-new compact and lightweight 5" form factor. Perfect for DSLR's, Mirrorless Camera and HDMI Camcorders and equipped with a high-bright 1000NIT Full-HD resolution display, Ninja V offers outstanding visibility in high-ambient light environments and also enables stunning HDR monitoring through the AtomHDR processing engine.

We also have the Pro Kit version of this model, take a look at Atomos Ninja V Pro Kit.

Featuring HDMI 2.0 and support for up to 4K 60p ProRes and DNx recording to Master Caddy II SSD media, Ninja V provides everything filmmakers and game developers expect from an Atomos device.

Record like a Ninja:
Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. A tiny 1TB AtomX SSDmini will give you 2.5 hrs of 4K recording.

The SSD made Mini:
The new AtomX SSDmini is a little over 1/4 inch tall and 3" long. It is also 20% shorter than traditional SSDs, yet keeps the standard SATA III connector. It is backward compatible with previous Atomos drives by adding a clever extension handle. These tiny, slimline SSDs are a true innovation and our close drive partners Angelbird, G-technology and Sony are all making custom versions for your Ninja!

Small Monitor made perfect:
The stunningly bright 5.2-inch 10-bit HDR monitor has an astounding 1,000 nits of output. It’s a sleek 1” (2.5cm) aluminium body, is crafted for maximum durability, weighs in at just 11oz (320g), and attaches to any camera rig easily.




HDR/SDR perfection every time:

The Ninja screen displays a stunning 10+ stops of dynamic range in real-time from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen.
The display can be calibrated for perfect colour accuracy every time, with playout to HDR or SDR TV sets.

Record HDR Games:
4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV, and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!

AtomOS Tools and Pocket Size Playback:
AtomOS gives simple tools for accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't 100% complete until checked; AtomOS gives speedy playback, slow motion and frame-by-frame analysis for instant review.

Ultimate Pro-Video & Broadcast Monitor:
Any production large or small needs high quality viewing. Even if you aren’t recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI, or fed in analogue via a stereo 3.5mm line/mic socket – especially useful for cameras that do not have a mic input.

Edit, finish & upload on Mac & PC:
The recorded Ninja files are available immediately on your Mac or PC for editing. Tag while recording on the fly for direct-to-edit look-up with up to six streams, edited directly from the SSD in Final Cut Pro X, Adobe Premiere or Avid Media Composer. Video and gaming workflows are supported for the fastest path to your audience.

Endless Open Expansion:
Enhance the Ninja V through the in-built modular expansion slot. Bi-directional high speed video, audio and power are available. Expansion modules will dock onto the battery slot of the unit and offer advanced features.

Looks Good, Sounds Great:
Like all Atomos Monitor/Recorders, Ninja V enables audio input directly from your camera. Choose from digital source via HDMI, or analogue input via the stereo 3.5mm line/mic socket, depending on your rig.



read less

MPN: AO-ATOMNJVPL1 + AO-ATOMXCST01

Barcode: 29019

Specification

Dimensions 129 x 49 x 160 (with out Ninja V/V+)
Weight 485g / 1.06lbs
Mount Points Anti rotational 1/4" 20 / 3/8 on base of unit
Body ABS plastic with locking arm for Ninja V/V+
Cooling Passive
Tally Light Record tally Via Ninja V/V+, Program and Preview illumantaion on CAST buttons
Control Buttons 4 x Switching, 4 x Function
AtomXpansion To connect to Ninja V/V+ (no moduell pass through)
DC in Connector Lock DC connector from Ninja V/V+ DC power supply
Battery Via optional Atomos DC to DTAP cable
Touchscreen Via Ninja V/V+ SuperAtom IPS panel (capacitive touch)
Size 5.2"
Resolution 1920 x 1080
Brightness (cdm2 / Nits) 1000
Aspect Ratio 16:09
Colour Gamut Rec. 709
HDMI 4 x HDMI 1.4b up to 1080p60
Bit Depth 10bit
Video Chroma Subsampling 4 2 2
HDCP Copy Protection No
HDMI CAST - HDMI 1.4b up to 1080p60 - Program ONLY
HDMI Loop Out Ninja V/V+ - Multi functions out - Program, Preview, Multiview
Multiview Yes, via Ninja V/V+
OS Overlays Optional via Ninja V/V+ HDMI out
Video Chroma Subsampling 4 2 2
Bit Depth 10bit
USB UVC USB-C up to 1080p30
Audio Quality 24/48kHz
Audio Codec PCM
HDMI 2ch 24Bit, input dependent per input
Analogue Audio In 3.5mm via Ninja V/V+
Analogue Audio Out 3.5mm via Ninja V/V+
Headphone Out 3.5mm via Ninja V/V+
Embedded HDMI
FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60
FHD 1920 x 1080 PsF No
FHD 1920 x 1080 Interlaced 50/59.94/60
1280 x 720p No
SD PAL / NTSC No
Program Recording CODEC via Ninja V/V+

Apple ProRes
LT, 422, 422HQ
Program Recording CODEC via Ninja V/V+

Avid DNxHD
DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com)
Playback via Ninja V/V+

Apple ProRes
Yes, with Linear PCM audio
Playback via Ninja V/V+

Avid DNx
Yes, with Linear PCM audio
Switched Program Record Yes via Ninja V/V+
Multiple HDMI Input Up to 4 x HDMI up to 1080p60
Multiview Display Quad input display on Ninja V/V+ Display
Multiview Output Via Ninja V/V+ HDMI out - Set to Program, Preview or Multiview
Picture in Picture (PIP) Any input over Any input, 4 postions in small or large size PIP
Graphic Overlays Select lay out for Stored Graphics in Ninja V/V+ and save configured scene presets
Media Storage Storage Upload and Store Graphics in Ninja V/V+
Input Transitions Fade from/to Black / White
Input Processing Interlaced to Progressive
Input Frame Rate Processing Yes
Master Caddy II Yes
SSD Mini Yes, requires the included AtomX SSD mini handle adaptor
File System ExFat
Pulldown Removal Interlaced to Progressive on Input and USB stream
Accessories Included AtomX CAST, USB-C cable and SSDmini Handle Adaptor
Optional Extras USB Dock
List Product Requires Ninja V / V+
Standard 1 Year

MPN: AO-ATOMNJVPL1 + AO-ATOMXCST01

Barcode: 29019
