Atomos Ninja V
Enlarge

Product Description

Atomos Ninja V Atomos Ninja V Recorder / Monitor Record like a Ninja: Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. A tiny 1TB AtomX... read more

Atomos Ninja V

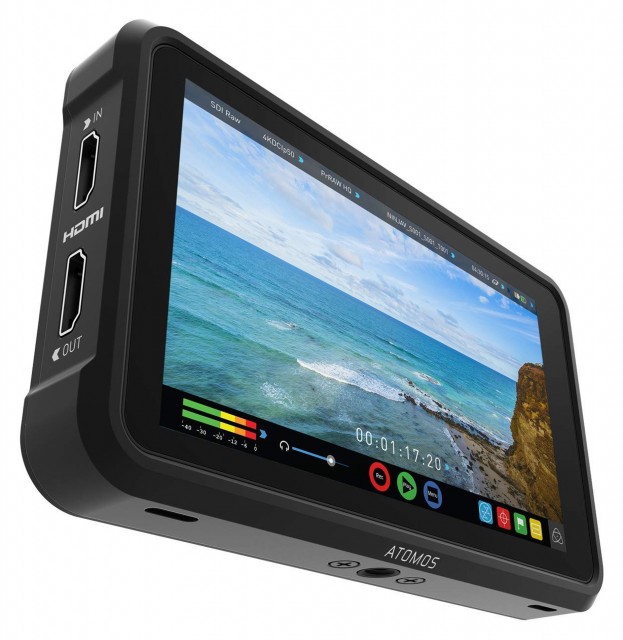

Atomos Ninja V Recorder / Monitor

Record like a Ninja:

Record up to 4Kp60 10-bit HDR video direct from your camera's sensor, over HDMI 2.0. Store edit-ready ProRes or DNxHR on affordable SSD drives and bypass your cameras internal compression and record time limits. A tiny 1TB AtomX SSDmini will give you 2.5 hrs of 4K recording.

The SSD ... made Mini:

The new AtomX SSDmini is a little over 1/4 inch tall and 3" long. It is also 20% shorter than traditional SSDs, yet keeps the standard SATA III connector. It is backward compatible with previous Atomos drives by adding a clever extension handle. These tiny, slimline SSDs are a true innovation and our close drive partners Angelbird, G-technology and Sony are all making custom versions for your Ninja!

Small Monitor made perfect:

The stunningly bright 5.2-inch 10-bit HDR monitor has an astounding 1,000 nits of output. It’s a sleek 1” (2.5cm) aluminium body, is crafted for maximum durability, weighs in at just 11oz (320g), and attaches to any camera rig easily.

HDR/SDR perfection every time:

The Ninja screen displays a stunning 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. Clearly see your images in daylight on the near edge-to-edge anti-reflection screen. The display can be calibrated for perfect color accuracy every time, with playout to HDR or SDR TV sets.

Record HDR Games:

4kp60 or HDp240 Game Recording just became fun and simple from any HDMI gaming unit. Place the Ninja V in-between your unit and the TV, and record for hours to off-the-shelf SSD drives. Auto HDR flags mean perfect TV set up every time! Show off your skills or check your game development on the most stunning video recorder ever built!

AtomOS Tools and Pocket Size Playback:

AtomOS gives simple tools for accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't 100% complete until checked; AtomOS gives speedy playback, slow motion and frame-by-frame analysis for instant review.

Ultimate Pro-Video & Broadcast Monitor:

Any production large or small needs high quality viewing. Even if you aren’t recording, the Ninja V is the best monitor available today. Audio can be input directly from the camera digitally via HDMI, or fed in analogue via a stereo 3.5mm line/mic socket – especially useful for cameras that do not have a mic input.

Edit, finish & upload on Mac & PC:

The recorded Ninja files are available immediately on your Mac or PC for editing. Tag while recording on the fly for direct-to-edit look-up with up to six streams, edited directly from the SSD in Final Cut Pro X, Adobe Premiere or Avid Media Composer. Video and gaming workflows are supported for the fastest path to your audience.

Endless Open Expansion:

Enhance the Ninja V through the in-built modular expansion slot. Bi-directional high speed video, audio and power are available. Expansion modules will dock onto the battery slot of the unit and offer advanced features.

read less

MPN: ATOMNJAV01

Barcode: 814164021173

Specification

Specification

Physical Specifications
Dimensions (W x H x D mm) 151 x 91.5 x 31
Weight 360g / 12.7oz
Mount points 1 x Anti rotation 1/4"-20 + 3/8 top and bottom
Environmental
Ambient operating temperature Up to 40° C
Construction and Control
Body Aluminium & ABS plastic
Cooling Actively controlled fan and heat sink
Tally light Rear and front
Multi-function button Power / lock Screen
AtomXpansion slot Yes
Power
Input voltage 6.2V - 16.8V
Operating power 5.8V - 7.2W
Compatible batteries NPF L series
Built in battery No
Battery Run time (Record) 5200mAh - up to 2hrs (monitor & record 4K 60p)7800mAh - up to 3hrs (monitor & record 4K 60p)
Continuous power Via Optional AtomX SYNC Module
DC in connector Via DC Jack on Battery Eliminator
Dtap Via Battery Eliminator and optional D-Tap to DC cable
Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 5.2"
Resolution 1920 x 1080
PPI 427
Bit depth 10Bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / nits) 1000
Aspect ratio 16:9
Color Gamut Rec.709
Calibration support Atomos Calibrator with Calibrite ColorChecker Display Pro or ColorChecker Display Plus
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3,Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilmFlog, PQ (HDR10), HLG, Nikon N-Log
Gamut BT2020, DCI P3, DCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 /RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format
3D LUT Down Stream Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion Log / HDR to HLG / PQ / Dolby Vision
Video Input
HDMI 1 x HDMI (2.0) 4K p60
HDMI RAW Apples ProRes RAW up to 6K
SDI Optional via AtomX SDI module
SDI RAW Optional with AtomX SDI + SDI RAW activation
Bit Depth 8/10-bit Video / RAW up to 12-bit
Video Chroma Subsampling 4:2:2
HDCP copy protection Not supported
Metadata
HDMI RAW - white balance, exposure index, shutter speed/angle, iris F stop, ISO, gamma, gamut
SDI File name from Arri, RED
Video Output
HDMI 1 x HDMI (2.0) 4k p60
SDI loop out Optional Via AtomX SDI module
SDI Play out Optional Via AtomX SDI module
Video Chroma Subsampling 4:2:2
Bit Depth 10-bit Video / 12-bit RAW
Web Streaming
USB UVC Optional via Connect 4k
Video Signal Conversion
HDMI to SDI Optional Via AtomX SDI module
SDI to HDMI Optional Via AtomX SDI module
Audio In/Out
Audio Quality 24-bit 48kHz
Audio Codec PCM
HDMI 8ch 24-bit, input dependent
SDI 12ch 24-bit, input dependent
Analogue Audio in 3.5mm 2ch.
Headphone out 3.5mm 2ch.
Timecode / Sync
Embedded HDMI and SDI
Time of day Yes, Time and Date
LTC via 3.5mm audio Jack input (requires post processing)
Wireless SYNC Via Optional AtomX SYNC Module
Resolution and Frame Rates (Record, Monitor & Playback)
6k RAW Only up to 30p via HDMI
4k DCI 23.98/24/25/29.9/30/50/59.94/60p
4k UHD 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080 Optional via AtomX SDI module
Anamorphic 3.5k: RAW up to 60p (from supported cameras only)
FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF converted to P and looped out PsF
FHD 1920 x 1080 Interlaced 23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p 50/59.94/60p
Recording CODEC
Apple ProRes RAW ProRes RAW & RAW HQ
Apple ProRes LT, 422, 422HQ
Avid DNxHD 220x, 220, 145, 36
Avid DNxHR LB, SQ, HQ, HQX
H.265 Optional activation. For more info visit my.atomos.com
Playback
Playlist Yes, create playlists from full or sub clips
Loop Yes, with user customizable in / out markers
Apple ProRes Raw Yes, recorded clips
Apple ProRes Yes, with Linear PCM audio
Avid DNx Yes, with Linear PCM audio
Recording functions
Pre-roll record Yes (HD 8s, 4K 2s) - Not available in RAW
Timelapse Yes
Multi Input / Switching
SDI A/B toggle via optional AtomX SDI module
Supported media
Master Caddy I Not compatible
SSDmini Native size and fit
CFast II Supported cards via optional AtomX CFast Adapter
File Naming Unit Name - Scene/Shot/Take
File System ExFAT
On screen tools
Waveform Yes, 3 size / position
RGB parade Yes, 3 size / position
Vector scope Yes, 2 size / position
1 x Zoom Yes. 1:1 Pixel mapping for 4k
2 x Zoom Yes
Focus peaking Colour selected / threshold setting / color / mono / edges only
False colour Yes, with scale
Zebra Yes, adjustable
Isolate color channel Blue Only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides 9:16, 1:1, 1.91:1, 4:5
Safe areas Action and Graphic
Grid markers 9 grid
Anamorphic desqueeze 1.25x 1.33x , 1.5x ,1.8x ,2x
Display Flip Vertical Only
Onboard Signal Processing
Pulldown Removal 24/25/30pSF > 24/25/30p (2:2 pulldown)60i > 24p (3:2 pulldown)
4K UHD Downscale for HD Loop out - 4K UHD to FHD
DCI Crop Loop out - 17:9 to 16:9 Crop
Remote control
HDMI Auto HDMI Trigger, Supported Protocols - Canon, Sony,Atomos Open Standard
SDI SDI trigger camera selectable
Serial 2.5mm Jack LANC control and calibration via optional USB to serial cable
Bluetooth LE via optional AtomX SYNC module
Wireless RF via optional AtomX SYNC module
External Device Control
Serial 2.5mm Jack Camera control for supported cameras via Optional USB to Serial Cable
Bluetooth LE via optional AtomX SYNC module to compatible devices
Wireless RF via optional AtomX SYNC module to compatible devices
Supported Applications
XML Cut tag EDL in FCPX XML
Apple ProRes RAW Apple FCP, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.
Video Codecs All Applications with support for Apple ProRes and Avid DNX in .MOV wrapper
What’s in the box
Accessories included Ninja V, 1 x Battery eliminator, 1 x international DC power supply, 1 x MasterCaddy II and QuickStart Guide

MPN: ATOMNJAV01

Barcode: 814164021173
