Product Description

MPN: 5077C007

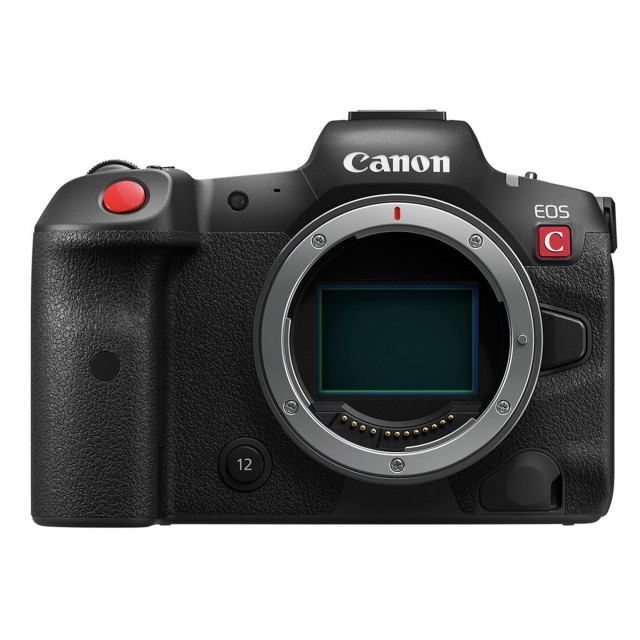

Canon EOS R5 C Cinema Camera Specification

Imaging

• Lens Mount: Canon RF
• Sensor Resolution: Actual: 47.1 Megapixel / Effective: 45 Megapixel (8192 x 5464)
• Image Sensor: 36 x 24 mm (Full-Frame) CMOS
• Sensor Crop (35mm Equivalent): Crop Factor: 1x / Additional Modes: 1.5x/1.6x/3x *Additional Crop Occurs in Select Video Modes
• Image Stabilization: Digital
• Built-In ND Filter: No
• Capture Type: Stills & Video

Exposure Control

• Shutter Type: Mechanical Focal Plane Shutter and Electronic Rolling Shutter
• Shutter Speed: Mechanical Shutter - 1/8000 to 30 Seconds / Electronic Front Curtain Shutter - 1/8000 to 30 Seconds / Electronic Shutter - 1/8000 to 0.5 Seconds
• Bulb/Time Mode: Bulb Mode
• ISO Sensitivity Range – Photo: 100 to 51,200 in Manual Mode (Extended: 50 to 102,400) / 100 to 12,800 in Auto Mode (Extended: 100 to 51,200)
• ISO Sensitivity Range Video: 100 to 51,200 (Extended: 50 to 102,400)
• Metering Method: Center-Weighted Average, Evaluative, Partial, Spot
• Precise Scan Rate Control: Yes
• Exposure Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
• Exposure Compensation: -3 to +3 EV (1/3, 1/2 EV Steps)
• Metering Range: -3 to 20 EV
• White Balance: 2500 to 10,000K - Presets: ATW, AWB, Cloudy, Colour Temperature, Custom, Daylight, Flash, Fluorescent, Shade, Tungsten
• Continuous Shooting Mechanical Shutter: Up to 12 fps at 45 MP for up to 180 Frames (Raw) / 350 Frames (JPEG)
• Continuous Shooting Electronic Shutter: Up to 20 fps at 45 MP for up to 83 Frames (Raw) / 170 Frames (JPEG)
• Interval Recording: Yes
• Self-Timer: 2/10-Second Delay

Interface

• Media/Memory Card Slot: Slot 1: CFexpress Type B / Slot 2: SD/SDHC/SDXC (UHS-II)
• Video I/O: 1 x Micro-HDMI (Unspecified Signal) Output
• Audio I/O: 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
• 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output
• Power I/O: 1 x USB-C (9VDC at 3 A) Input
• Other I/O: 1 x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Power Input)
• 1 x BNC (Timecode) Input/Output
• Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 5.0 Control
• Mobile App Compatible: Yes: Android & iOS
• Global Positioning (GPS, GLONASS, etc.): GPS *Adapter Required or Via Connected Smartphone

Monitor

• Display Size: 3.2"
• Resolution: 2,100,000 Dot
• Display Type: Free-Angle Tilting Touchscreen LCD

Viewfinder

• Type: Built-In Electronic (OLED)
• Size: 0.5"
• Resolution: 5,790,000 Dot
• Eye Point: 23 mm
• Coverage: 100%
• Magnification: Approx. 0.76x
• Diopter Adjustment: -4 to +2

Focus

• Focus Type: Auto and Manual Focus
• Focus Mode: Continuous-Servo AF, Manual Focus, Single-Servo AF
• Autofocus Points: Phase Detection: 1053
• Autofocus Sensitivity: -6 to +20 EV

Flash

• Built-In Flash/Light: No
• Maximum Sync Speed: 1/250 Second
• Flash Compensation: -3 to +3 EV (1/3, 1/2 EV Steps)
• Dedicated Flash System: eTTL
• External Flash Connection: Shoe Mount

Environmental

• Operating Temperature: 0 to 40°C
• Operating Humidity: 0 to 85%

General

• Power: 1x LP-E6 Lithium-Ion
• Dimensions, body only: 14.22W x 10.16H x 11.18D cm
• Weight, body only: 680 g

What’s in the Box?

• Canon EOS R5 C Cinema Camera Body
• Battery Pack LP-E6NH
• Battery Charger LC-E6
• Shoulder Strap
• USB-C Cable
• AC Cable

MPN: 5077C007
