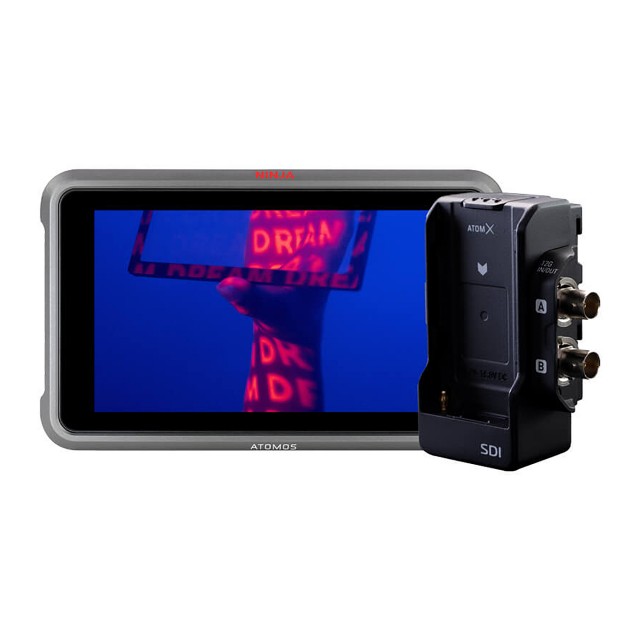

Atomos Atomos Ninja V+ 5 inch Monitor Recorder Pro Kit
Enlarge

Product Description

Atomos Ninja V+ 5 inch Monitor Recorder Pro Kit The Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" on-camera monitor/recorder that records and plays back up to DCI 4K and records to purpose-built mini-SSDs. This monitor can record Apple ProRes Raw up to DCI 4K60 directly from the sensor... read more

Atomos Ninja V+ 5 inch Monitor Recorder Pro Kit

The Atomos Ninja V 5" 4K HDMI Recording Monitor is a 5" on-camera monitor/recorder that records and plays back up to DCI 4K and records to purpose-built mini-SSDs. This monitor can record Apple ProRes Raw up to DCI 4K60 directly from the sensor of select cameras. Display features include a 10-bit screen with a brightness of 1000 cd/m² AtomHDR technology for accurate monitoring of your log gamma footage, and support for popular log formats from Sony, ARRI, Canon, JVC, Panasonic, Nikon, RED, Sony, and Z CAM cameras.

Built to withstand the rigors of production, the Ninja V features an aluminum chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, anamorphic de-squeeze, and focus assist tools. Separately available AtomX SDI, AtomX SYNC, Connect 4K modules, and an SDI Raw license key to further expand your Ninja V's capabilities. Firmware update 10.61 brings customized timecode sequences that can be saved as a single file.

5" Daylight Viewable Screen

The Ninja V features a 5" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color-calibrated from the factory to ensure accurate image representation.



Recording Codecs Including Raw over HDMI

  • Record Apple ProRes and ProRes Raw with select cameras at rates up to DCI 4K60 and up to 120 fps in HD
  • Enables ProRes Raw capture with smaller, more cost-effective, mirrorless cameras
  • Avid DNx compatibility enables wide camera and editing software compatibility

Bright 5" Display with AtomHDR

  • Display ten+ stops of dynamic range of your camera's log image with AtomHDR
  • 1920 x 1080 display with 1000cd/m² brightness for daylight viewing
  • 10-bit color processing and user calibration
  • Supports custom LUTs

DSLR and Mirrorless Camera Support

Compatible with virtually any HDMI or SDI source including cameras from:
ARRI, Canon, FUJIFILM, Nikon, Panasonic, RED, Olympus, Sony, and Z-CAM



4K 60p Capabilities

Record DCI or UHD 4K at rates up to 60 fps, including 24 and 25 fps for a more filmlike aesthetic. All recordings are stored as high-quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit rates are available to fit your project and storage needs.



SSD Recording

Record to standard 2.5" SSD drives or to compact AtomX SSDmini drives offering up to 2TB storage. SSDmini drives offer read speeds up to 550 MB/s and write speeds up to 500 MB/s, capturing up to 150 minutes of 4K video on a 1TB drive.



User Calibration

Calibrate with the separately available X-Rite i1 Display Pro tool to maintain optimal color accuracy.



Anamorphic De-Squeeze

The Ninja V supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with 2x, 1.5x, 1.33x, or Panasonic 8:3 ratios.



Selectable Markers

A wide variety of frame lines include standard versions plus 1:1, 4:5, 1:91:1, and 9:16 options.



Game Capture

Simple, standalone solution for UHD 4K, HDR, and high frame rate game capture and review.



Audio Input/Output

Input/output audio via HDMI or add external audio via the 3.5mm Line In/Mic In port; output audio using the 3.5mm headphone port for convenient audio monitoring.



Optional Expansion Modules

  • AtomX SDI Module for 12G-SDI input and output and HDMI/SDI cross conversion
  • SDI Raw activation key
  • AtomX SYNC for wirelessly synced, timecoded multicamera capture
  • Atomos Connect 4K for HDMI to USB conversion for streaming up to 1080p60
Note:
SDI Raw is not supported on Sony FS700, F5, and FS5 cameras.



Supported Log Formats

  • ARRI Log C
  • Canon C-Log, C-Log 2
  • FUJIFILM F-Log
  • JVC J-Log
  • Nikon N-Log
  • Panasonic V-Log
  • RED LogFilm
  • Sony SLog2, SLog3

HDR Recording (Gamut)

  • ARRI Log CEI160, CEI200, CEI250, CEI320,
  • ARRI LogCEI400, CEI500, CEI640, CEI800
  • ARRI LogCEI1000, CEI1280, CEI1600
  • Canon C-Log, C-Log 2, C-Log3
  • FUJIFILM F-Log
  • HLG
  • JVC J-Log1
  • Nikon N-Log PQ10K
  • Panasonic V-Log
  • RED LogFilm, RG310, RG312
  • Sony SLog2, SLog3

HDR Monitoring (Gamma)

  • ARRI ALEXA Wide Gamut
  • BT.2020
  • Canon Cinema, DCI P3, DCI P3+, BT2020
  • JVC LS300
  • Nikon N-Log PQ10K
  • Panasonic V-Gamut
  • Rec.709
  • RED DRAGONcolor, DRAGONcolor2
  • REDcolor2, REDcolor3, REDcolor4
  • REDWideGamut
  • Sony S-Gamut, S-Gamut3, S-Gamut3.Cine
  • Sony SLog2, SLog3

HDR Monitoring (Gamut)

  • ARRI ALEXA Wide Gamut (mapping to Rec709/BT.2020/DCI-P3 on loop-out)
  • BT.2020
  • Canon Cinema
  • DCI-P3, DCI-P3+
  • Panasonic V-Gamut
  • Rec.709
  • RED DRAGONcolor, DRAGONcolor2
  • REDcolor2, REDcolor3, REDcolor4
  • REDWideGamut
  • Sony S-Gamut, S-Gamut3, S-Gamut3.Cine

Firmware Update 10.61

Time-Lapse

Record a time-lapse video as a single file
Available in ProRes, DNx, and ProRes Raw over HDMI or SDI
Time-lapse sequence options include:



  • Number of frames/seconds captured
  • Intervals between frames/seconds/minutes/hours
  • Duration of sequence in frames/seconds/minutes/hours

Compatibility Mode for HDMI and SDI Inputs

Increases stability of input/output locking for 12G-SDI
Improves signal locking from select cameras including:
  • Z CAM
  • Canon EOS 1D X Mk II on 4Kp50/60 video

Monitior Leica L-Log Gamma in BT2020 Gamut

  • Supports Leica SL 25 only
  • Support for other models available in future updates

Atomos AtomX SDI Module for Ninja V

The Atomos AtomX SDI Module for Ninja V brings 12-G SDI I/O to your Ninja V monitor/recorder. The module supports 4K up to 60p as well as 2K up to 240p and is a simple addition to your Ninja V, mounting to the expansion port in the battery slot. The 12-G ports are user assignable as input or output and support industry standard SDI formats. The AtomX provides numerous playback options including HDR.

The AtomX SDI takes advantage of the expansion port of the Ninja V to pass video signals to and from without using an external cable. The AtomX SDI supports up to 12G-SDI video signals and as part of the Ninja V Pro Kit, it supports RAW video and SDI to HDMI conversion. An L-series battery can be used to power both the AtomX SDI and your Ninja V, passing power to the Ninja V without significantly increasing the footprint of your Ninja V.

12G-SDI

Adds two user–assignable 12G-SDI ports to your Ninja V monitor/recorder

RAW Video/Conversion

Supports RAW video and SDI to HDMI conversion as part of the Ninja V Pro Kit

HDR

Offers numerous playback options including HDR (high dynamic range)


Atomos Connect 4K

The Atomos Connect 4K provides HDMI to USB conversion for live streaming applications. It allows you to run an HDMI signal to your Mac or Windows computer's USB port for use in streaming applications such as OBS, Twitch, and YouTube Live. Connect 4K accepts up to a UHD 4K30 HDMI signal and outputs up to a 1080p60 signal over USB. You can connect an HDMI camera to use as a webcam, gaming systems for live streaming gameplay, monitor signals, and signals from various other devices. When used with the Atomos Shogun 7 monitor, which is capable of recording and switching four 1080p60 signals, Connect 4K allows you to send the switched feed to your computer for streaming.

Connect 4K automatically converts your HDMI input to the universal USB Video Class standard (UVC) for compatibility with popular CDN platforms that supports UVC, such as Skype, MS Teams, Zoom, Twitch, YouTube, and many more. It can also be used with professional streaming applications such as OBS, StreamLabs OBS, Wirecast, and X-Split for enhanced multimedia streaming. The pocket-size design of Connect 4K makes it a handy and very easy-to-use device. Connect 4K is powered from your computer's USB port and requires no external power supply. It supports up to 49' HDMI AWG26 certified cables.

Key Features

  • HDMI to USB conversion for streaming applications such as OBS, Twitch, and YouTube Live
  • Up to UHD 4K30 HDMI input
  • Up to 1080p60 output over USB
  • Can be used with the Atomos Shogun 7 monitor/recorder/switcher to send the switched feed to your computer for streaming
  • Converts your HDMI input signal to the universal USB Video Class standard (UVC)




read less

MPN: AO-ATOMNJVPL2

Barcode: 814164022514

Specification

Display
Panel Type IPS-Type LCD
Display Size 5.0" / 12.7 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1000 cd/m2
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
Pixels Per Inch (ppi) 423 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Pixel Zoom, RGB Parade, Scaling, Vectorscope, Waveform, Zebra
I/O
Video 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output
Embedded Audio HDMI: 2-Channel
HDMI: 8-Channel
Audio 1 x 1/8" / 3.5 mm Mic/Line Input
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power 1 x D-Tap Input
Other I/O 1 x LANC (2.5 mm)
Wi-Fi None
Format Support
Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50
Gamma Curve Rec709
Video Signal Conversion HDMI to SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger HDMI
Pre-Roll Record 4K: 2 Seconds
Full HD: 8 Seconds
Encoding Formats Up to 4097 x 2160
ProRes 422, HQ, LT, Raw, Raw HQ 8/10-Bit
DNxHR HQ, HQX, LB, SQ 8/10-Bit
Maximum Audio Tracks 12
Metadata Tagging 10
Power
DC Input Power 6.2 to 16.8 VDC
Battery Type 1 x L-Series
Power Consumption 10 W (Typical)
22 W (Maximum)
Mounting
Mounting 2 x 3/8"-16 Female
Environmental
Operating Temperature 40°C

General
Material of Construction Aluminum, Polycarbonate
Dimensions 151 x 91.5 x 31.5 mm
Weight 360 g

MPN: AO-ATOMNJVPL2

Barcode: 814164022514

Finance

Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest and greatest from Castle Cameras today. There are various options available, including (subject to promotion) interest free credit. We are currently only offering finance through our Mail Order / On-line services. If you need any further information please call our team on 01202 526606 or e-mail enquiries@castlecameras.co.uk

Atomos Ninja V+ 5 inch Monitor Recorder Pro Kit

£1,249.00
WAS £1,318.00
YOU SAVE £69.00

No stock on site. Please allow 20 days for delivery

Product Code: FP29021



Product Summary

£69.00 Discount

One year UK Warranty

  • Features 4 HDMI inputs and physical controls.
  • 10-Bit 4:2:2 ProRes and DNxHR Encoding
  • Accurately monitor your log gamma footage
  • 150 minutes of 4K video on a 1TB drive
  • includes two L-series batteries, a fast charger, a DC power supply, a sun hood, a screen protector, and a plastic travel case.
