Product Description
Desview R5ii 5.5 Inch On-Camera Touch-Screen Monitor The Desview R5II 5.5 inch on camera touch monitor is a lightweight and portable monitor boasting a bright 800 cd/m² display with a 178° viewing angle and a screen resolution of 1920 x 1080. Packed with useful tools and features,including... read more

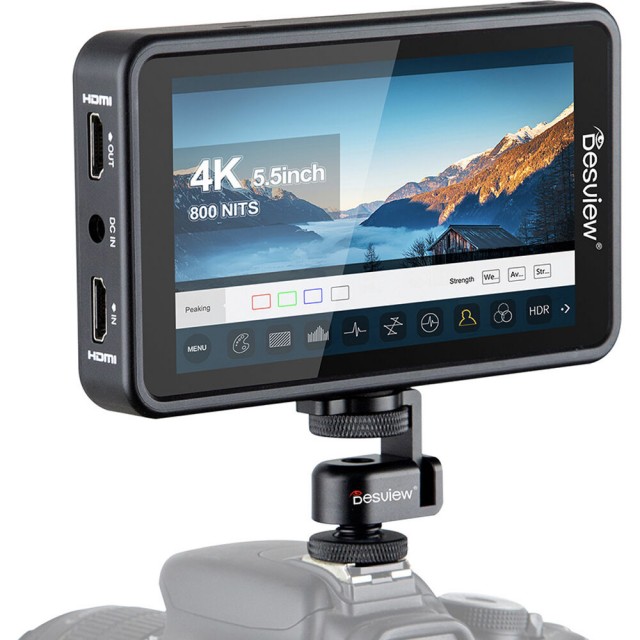

Desview R5ii 5.5 Inch On-Camera Touch-Screen Monitor
The Desview R5II 5.5 inch on camera touch monitor is a lightweight and portable monitor boasting a bright 800 cd/m² display with a 178° viewing angle and a screen resolution of 1920 x 1080. Packed with useful tools and features,including touchscreen and pinch to zoom, the R5II has an HDMI input that handles up to DCI 4K24 and an HDMI loop out. It also offers a 3.5mm headphone jack and a USB input for loading custom 3D LUTs using the supplied USB thumb drive.
HDR support includes HGL and PQ modes, and multiple ratio anamorphic options include 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x de-squeeze functions. A dual-purpose battery slot on the rear of the panel allows you to choose between using Sony NP-F style or Canon LP-E6 batteries.
- Daylight-viewable, 5.5 inch touchscreen on camera monitor with 800 cd/m² brightness.
- Slim, lightweight design with touchscreen IPS LCD panel.
- HDMI supports video input up to DCI/UHD 4K30.
- Two 1/4 inch mounting threads on the side and bottom of the monitor.
- Touchscreen
- The 5.5 inch touchscreen panel features 1920 x 1080 resolution and a 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch to zoom, which helps check every corner and detail of the image.
- The 800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.
MPN: R5ii
Barcode: 6970602270894
Desview R5ii 5.5 Inch On-Camera Touch-Screen Monitor Specification
Panel Type | IPS-Type LCD |
Display Size | 14.0 cm |
Screen Area | 120.96 x 68.04 mm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | 178° |
Touchscreen | Yes |
Maximum Brightness | 800 nits / cd/m2 |
Contrast Ratio | 1000:1 |
Dot Pitch | 0.021 x 0.063 mm |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 401 ppi |
Real-Time LUT Monitoring | SDR, HDR |
Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Split - Half, Vectorscope, Waveform, Zebra |
Video I/O | 1 x HDMI 1.4 Input 1 x HDMI 1.4 Loop Output |
Audio I/O | 3.5 mm Headphone Output |
Built-In Speaker | 1 |
Power I/O | 1 x Barrel 2.1 mm (24 VDC) Input 1 x Barrel 2.1 mm (8 VDC) Output |
Other I/O | 1 x USB-A 2.0 Input |
Media/Memory Card Slot | None |
Wi-Fi | None |
Video Format | HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
DC Input Power | 7 to 24 VDC |
Battery Type | 1 x LP-E6, L-Series |
Power Consumption | 9 W (Maximum) 0.1 W (Standby) |
Mounting | 21/4 inch Female thread |
Operating Temperature | -20 to 55°C |
Storage Temperature | -30 to 65°C |
Dimensions | 151.4 x 89.1 x 22 mm |
Weight | 200 g |
MPN: R5ii
Barcode: 6970602270894
