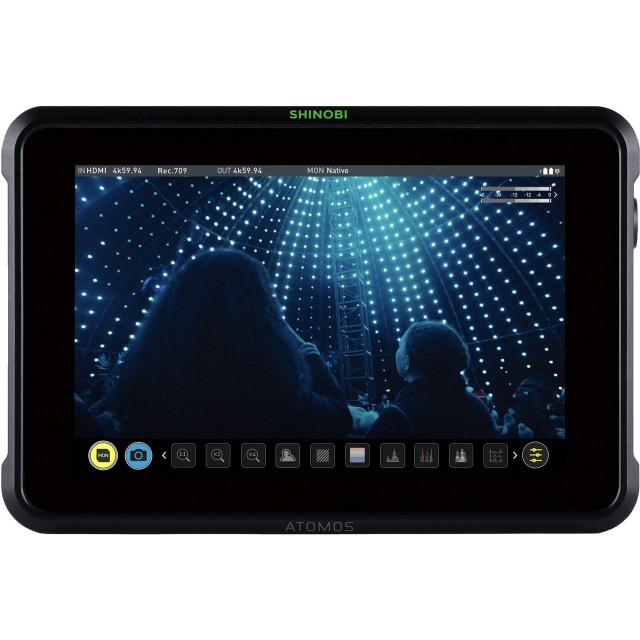

Atomos Atomos Shinobi 7-inch 4K HDMI HDR Photo & Video Monitor
Enlarge

Product Description

Atomos Shinobi 7-inch 4K HDMI HDR Photo & Video Monitor The Atomos Shinobi is a high resolution 7 inch monitor, perfect for viewing your 4K/2K footage on with a 1920 x 1200 10-bit FRC IPS display with a brightness of 2200 cd/m², which makes it suitable for use in both exterior and interior... read more

Atomos Shinobi 7-inch 4K HDMI HDR Photo & Video Monitor

The Atomos Shinobi is a high resolution 7 inch monitor, perfect for viewing your 4K/2K footage on with a 1920 x 1200 10-bit FRC IPS display with a brightness of 2200 cd/m², which makes it suitable for use in both exterior and interior conditions. This larger model improves on the original Shinobi as it adds 3G-SDI input and loop output up to 2K60, HDMI 2.0 input and loop output up to 4K60, signal cross conversion, a camera control port, dual L-series battery slots, and future possibilities with its built-in USB and RJ45 ports.

The touchscreen Shinobi 7 features great tools such as multi scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools. It also features an SDI card input to load custom 3D LUTs, and it supports SDR and HDR viewing. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.

It also supports camera control using its 2.5mm control port and optional cables, and it currently supports control of the Z CAM E2 series of cinema cameras. Built to withstand the rigors of production, the Shinobi 7 features a lightweight casing unit and powers from a dual L-series battery plate or using the included power adapter.

With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.




read less

MPN: AO-ATOMSHB002

Barcode: 814164022576

Atomos Shinobi 7-inch 4K HDMI HDR Photo & Video Monitor Specification

Display
Panel Type IPS-Type LCD
Display Size 7.0 inches / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 2200 cd/m2
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility Advanced HDR
Pixels Per Inch (ppi) 325 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Video I/O 1 x HDMI 2.0 Input
1 x BNC (3G-SDI) Input
1 x HDMI 2.0 Loop Output
1 x BNC (3G-SDI) Loop Output
Embedded Audio HDMI: 2-Channel
SDI: 8-Channel
Audio I/O 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel (16.8 VDC) Input
Other I/O 2.5 mm (LANC) Output
USB-A 2.0 Input
RJ45 Input/Output
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC
Wi-Fi None
Format Support
Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI (8/10-Bit 4:2:2)
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Gamma Curve ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3
Video Signal Conversion HDMI to SDI

SDI to HDMI
Power
DC Input Power 6.2 to 16.8 VDC
Battery Type 2 x L-Series
Power Consumption 4 W (Typical)
7 W (Maximum)
Mounting
Mounting 2 x 1/4 inch female thread
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C (Recommended)
General
Material of Construction Plastic
Dimensions 198 x 133 x 39 mm
Weight 577 g

MPN: AO-ATOMSHB002

Barcode: 814164022576
