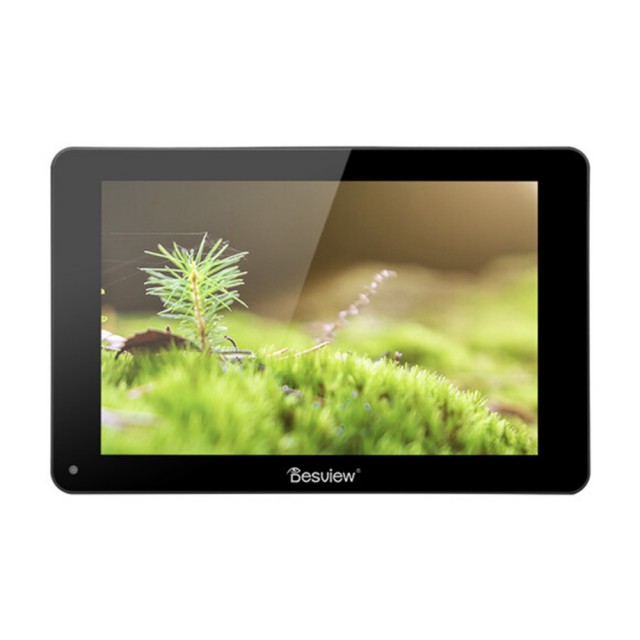

Desview R7Sii 7 inch On-Camera Touchscreen Monitor

 Full Touch Screen
Desview R7S monitor adopts a 7 inch touch screen panel with 1920×1200 resolution and 16:10 aspect ratio.
Tapping the screen with one finger can control the whole monitor, just like your smartphone. Pinch to zoom
helps check every corner and detail of the image. The short Press power button can lock the screen, to prevent
misoperation, user-friendly design!

3G-SDI & 4K HDMI Input/Output
The monitor supports both 3G-SDI and 4K HDMI signal input/output, including 1920*1080p, 3840*2160p,
4096*2160p, which enables uncompressed video transmission and multiple devices monitoring. R7S monitor
is compatible with Canon,Sony,Nikon,Panasonic,FujiFilm cameras and professional camcorders.3.5mm
headphone port for real time audio checking

2600nits High Brightness with Light Sensor
2600nits high brightness provides a clear display even filming under the sunlight. 1100:1 contrast ratio and
178°viewing angle ensures a great monitoring experience from different angles. A light sensor will adjust the
screen backlight brightness automatically according to the environmental change, which can protect your
eyes and provide a comfortable monitoring experience at night.

HDR Display Function
In contrast to normal SDR images, High Dynamic Range (HDR) allows you to see more of the details and colours
in images.HDR boosts a wider colour gamut, meeting around 90 percent of the DCI-P3 standard, the colour space
currently used by the film industry for cinema. It also increases the colour depth to reduce the occurrence of
banding between similar colours, more control on contrast or black levels to create more realistic-looking images.

Custom 3D LUT, Waveform, and Vectorscope
The Desview R7SII monitor has many professional Auxillary shooting functions, such as Histogram, Vectorscope,
Waveform, False Colour, Focus Peaking, Zoom, etc. You can import custom LUTs via SD card, to change the
image colour tone instantly. The histogram shows the brightness of images, The waveform shows exposure
information, and the Vectorscope shows the image's colour construction. Greatly facilitate the shooting process.
