Product Description

Atomos Shinobi II 5-inch, 1500nit HDR monitor for vloggers, creatives and photographers Designed for vloggers, photographers and content creators, the Shinobi II is slimmer, lighter and 50% brighter than the original unit. Camera Status A camera status indicator allows you to keep an eye on the camera's... read more

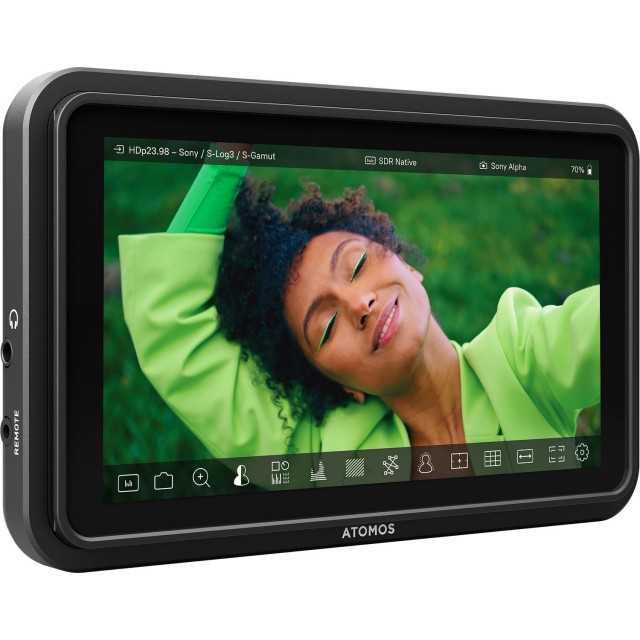

Atomos Shinobi II 5-inch, 1500nit HDR monitor for vloggers, creatives and photographers

Designed for vloggers, photographers and content creators, the Shinobi II is slimmer, lighter and 50% brighter than the original unit.

Camera Status

A camera status indicator allows you to keep an eye on the camera's internal record settings, battery status, and remaining recording time. A red edge display shows when the camera is recording internally, whether triggered by the camera or from the Shinobi II.

  • Slim, Light, Low-Profile Design
  • 5.2" 1920 x 1080 Capacitive Touchscreen
  • High 1500 cd/m² Brightness
  • 4K HDMI Input, HDR/HLG/PQ Support
  • USB PD Power, USB-C/LANC Camera Control
  • AtomHDR Mode with 10-Stop Dynamic Range
  • Built-In and USB Calibration Support

AtomOS 11 & Advanced Image Tools

The Shinobi II includes the latest Atomos AtomOS 11, which introduces numerous new tools and features with a more logical layout and easy-to-navigate interface.

Use the Shinobi II interface to adjust your camera lenses' aperture, shutter speed/angle, and ISO with its built-in exposure tools, such as false color, waveforms, zebras, or histogram, and achieve perfect exposure on every shot.

Brighter Display

The 5.2" touchscreen display is 50% brighter than the Shinobi, measuring 1500 cd/m² peak brightness, making it easily readable whether you're shooting indoors or in bright sunlight.

Input Signals

The Shinobi II features an HDMI 1.4 input that allows you to monitor signals in various resolutions and frame rates up to DCI/UHD 4K30 and up to 1080p60.

HDR and LUT Support

The HDR HLG and HDR PQ monitoring modes allow you to preview what your camera's Log output might look like in HDR. Users can also upload up to eight custom LUTs to the monitor's built-in storage to preview their shots with their own favorite looks.

Frame Guides

A variety of built-in cinema-style and social media-focused frame guides help compose your shots, including presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9, 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2.

Lightweight Design

The monitor has been slimmed down to weigh only 7.4 oz, and there are added locating holes alongside the 1/4"-20 threads for anti-twist mounting. A single L-series battery plate on the back has been placed in the center to improve balancing and manoeuvrability. The included HDMI/USB-C locking adapter allows you to use Atomos' new line of locking cables to prevent disconnecting or pulling.

Camera Control

Use the USB-C port to control the latest mirrorless or DSLR cameras from Canon, Panasonic, Sony, and Z CAM's E2 line. There is also a 2.5mm LANC port on the side for additional control compatibility.

NOTE: This will expand with future support for cameras from FUJIFILM, Nikon, OM System, and Sigma with firmware updates.

read less

MPN: ATOMSHB003

Barcode: 814164022941

Atomos Shinobi II 5-inch, 1500nit HDR monitor for vloggers, creatives and photographers Specification

Display

  • Panel Type: IPS-Type LCD
  • Display Size: 5.2" / 13.2 cm
  • Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Viewing Angle: Horizontal: 178° / Vertical: 178°
  • Touchscreen: Yes
  • Maximum Brightness: 1500 nits / cd/m2
  • Colour Support: 1.07 Billion Colours (8-Bit+FRC)
  • HDR Support: Yes, Hybrid Log Gamma
  • Pixels Per Inch (ppi): 423 ppi
  • Colour Gamut: 100% Rec. 709
  • Real-Time LUT Monitoring: SDR, HDR
  • Image Controls” Anamorphic De-Squeeze, Blue Only, False Colour, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Inputs / Outputs

  • Video I/O: 1x HDMI 1.4 Input
  • HDCP Support: No
  • Embedded Audio” HDMI: 2-Channel
  • Audio I/O: 1x 3.5 mm Headphone Output
  • Built-In Speaker: No
  • Power I/O: 1x USB-C (16.8 VDC) Input/Output
  • Other I/O: 1x 2.5 mm (LANC) Output
  • Media/Memory Card Slot: Single Slot: SD/SDHC/SDXC (UHS-I)
  • Wi-Fi: No
  • Bluetooth: No
  • Mobile App Compatible: No

Power

  • Input Power: 6.2 to 16.8 VDC
  • Battery Type: 1x L-Series
  • Power Consumption: 10 W (Typical) / 13 W (Maximum)

Mounting

  • Mounting: 1x 1/4"-20 Female (Bottom)

Environmental

  • Environmental Resistance: No
  • Operating Temperature: 40°C

General

  • Material of Construction: Polycarbonate
  • Dimensions: 151 x 91.5 x 20.8 mm
  • Weight: 210 g

What’s in the Box?

  • Atomos Shinobi II 5-inch
  • USB-C 2.0 Cable
  • HDMI/USB-C Locking Cable Adapter

MPN: ATOMSHB003

Barcode: 814164022941
