Atomos Atomos Shogun Ultra 7-inch monitor-recorder with integrated networking
Enlarge

Product Description

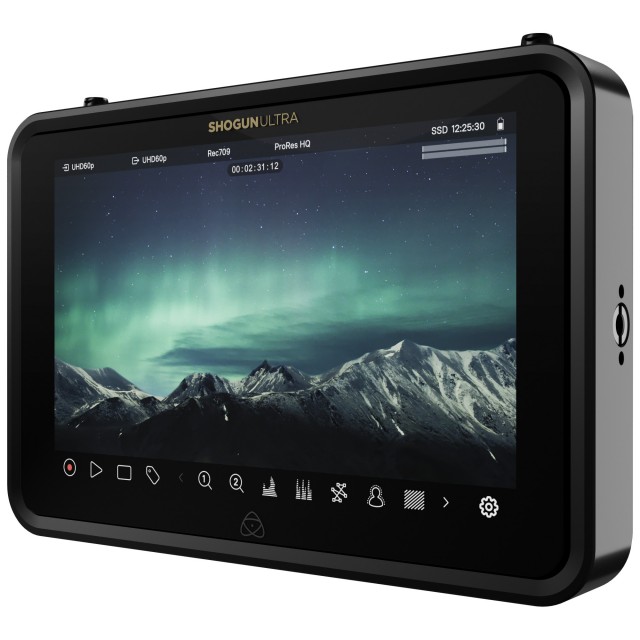

Atomos Shogun Ultra 7-inch monitor-recorder with integrated networking Shogun Ultra is your gateway to amazingly fast and productive cloud workflows. So much more than a super-bright monitor recorder, it takes you to new heights of productivity and collaborative creativity. Work faster, work better. SUPER... read more

Atomos Shogun Ultra 7-inch monitor-recorder with integrated networking

Shogun Ultra is your gateway to amazingly fast and productive cloud workflows. So much more than a super-bright monitor recorder, it takes you to new heights of productivity and collaborative creativity. Work faster, work better.

SUPER BRIGHT SCREEN

Shogun Ultra’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.

CHOOSE YOUR WORKFLOW

Shogun Ultra has two faces: Local and Cloud. Use it conventionally, and you have an incredible HDR screen, new monitoring tools and both HDMI and 12G-SDI. Turn on its wireless and network capabilities, and you have access to new and productive cloud workflows like camera to cloud and Atomos Edit. You can even edit your project in the cloud and publish directly to social media within minutes of shooting the action.

ENHANCE YOUR CAMERA

Shogun Ultra can capture RAW inputs up to 8K at 30fps, 6K at 60fps and 4K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats. With a super bright 2000nit 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun Ultra has a new operating system and user interface.

THE ULTIMATE SHOGUN

In addition to network and SDI connectivity, you get access to super-efficient cloud workflows, and you can cross-convert between HDMI and SDI. Take advantage of the new, ultra-fast and reliable WiFI 6E for more stable connections. Shogun Ultra, which can be remote-controlled over Bluetooth with AtomRemote App, is the most practical and affordable way to stream, transfer and edit in the cloud.

PUBLISH FROM THE CLOUD

Record higher-quality media for instant publishing. The new 4K camera to cloud mode lets you record and upload much higher quality H.265 video with higher framerates.* H.265 files are half the size of H.264 media. They’re small enough for camera-to-cloud workflows but more than good enough for immediate use on social media, sports reporting or news gathering. It’s the fastest way to get your video in front of your viewers (requires Atomos Cloud Studio (ACS) subscription). Also a super useful mode to record proxies at up to 4K 60p to match a original in-camera (OCF) file.

*Classic or Premium Atomos Cloud Studio subscription required.

ANY CAMERA, ANY FORMAT. ANYWHERE.

Pair Shogun Ultra equally well using SDI or HDMI with smaller cameras as part of a minimal setup or with full-size camera rigs on large-scale productions. Shogun Ultra is made from precision materials with a solid aluminium frame, crafted for maximum durability. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Shogun Ultra includes anti-rotational – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.

STREAM FROM ANYWHERE

Shogun Ultra supports live streaming to a range of online services including acebook Live, Twitch, YouTube, and custom RTMP/S. With Wi-Fi 6E, Gigabit Ethernet, and the ability to join cellular hotspots all built-in, Shogun CONNECT helps filmmakers, streamers, and video content producers reach their audience from anywhere.

Key Features

  • Support for more camera models with 12G-SDI
  • SDI input to HDMI output conversion
  • Wi-Fi 6E and 1GbE Ethernet
  • Stream to Facebook, Twitch, YouTube, and custom RTMP/S services
  • Share media with camera to cloud (C2C) and Atomos Edit
  • Live stream an HDMI or SDI source into Atomos Live Production or RemoteView
  • Synchronise cameras, audio recorders, and applications with AirGlu™
  • Support for AtomRemote app
  • Add major features without adding significantly to the overall footprint
  • A COMPLETE MONITORING TOOLBOX
  • Shogun Ultra includes comprehensive monitoring tools to help you get the perfect composition and exposure in every shot. Easy-to-use but powerful tools include waveform, focus peaking, multiple false colour tools, zoom controls, custom LUTs, and frame guides. Shogun’s new AtomOS 11 software is simple to update with new features and releases – as well as support for new cameras.

CONNECTIVITY. WE'VE GOT YOU COVERED.

Shogun’s comprehensive range of inputs and outputs lets you capture the highest quality video from the widest range of cameras, and connects you to the cloud, for new, ultra-speedy and productive workflows.

GET MORE FROM YOUR VIDEO

The AtomRemote app for iOS and macOS has an array of controls for Shogun Ultra. It lets you configure and control your Shogun from up to 15 meters away via Bluetooth LE while you define camera connections, select Gamma/EOTF and adjust Gamut settings. AtomRemote can control playback, select monitoring modes, apply custom 3D LUTs, and view image analysis tools, including exposure and focus. Output controls include options for 4K to HD, LUT preview and HDR output.

VERSATILITY AND POWER

With flexible options for industry standard formats and RAW codecs, Shogun Ultra records visually lossless “hero” files that are ready for editing and proxy/sharable files that look great but are quick to upload.

Shogun is designed to be versatile and meet the requirements of your workflow. Atomos understands the value in being able to select the format, quality, resolution, frame rate, or file size that best suits the needs of your production.

read less

MPN: ATOMSHGU01

Barcode: 0814164022835

Atomos Shogun Ultra 7-inch monitor-recorder with integrated networking Specification

Display

  • Panel Type: IPS-Type LCD
  • Display Size: 7.0" / 17.8 cm
  • Resolution: 1920 x 1200
  • Aspect Ratio: 16:9
  • Touchscreen: Yes
  • Maximum Brightness: 2000 nits / cd/m2
  • Bit Depth / Colour Support: 10-Bit (1.07 Billion Colours)
  • HDR Compatibility: HDR10
  • Pixels Per Inch (ppi): 315 ppi
  • Colour Gamut: 100% DCI-P3 / 100% Rec. 2020
  • Real-Time LUT Monitoring: SDR, HDR
  • Image Controls: Anamorphic De-Squeeze, False Colour, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

Inputs / Outputs

  • Video I/O: 1 x HDMI 2.0 Input / 1 x BNC (12G-SDI) Input / 1 x HDMI 2.0 Output / 1 x BNC (12G-SDI) Output
  • Embedded Audio: HDMI: 8-Channel / SDI: 24-Channel
  • Audio I/O: 1 x 3.5 mm Headphone Output / 1x 3.5 mm Input / 1 x 3.5 mm Output
  • Built-In Speaker: No
  • Power I/O: 1 x Barrel Input
  • Other I/O: 1 x 2.5 mm (LANC) / 1 x USB-C (Serial) Input / 1 x RJ45 (Gigabit Ethernet) Input
  • Media/Memory Card Slot: Single Slot: SSDmini/SSD with Master Caddy II/III
  • File System Support: exFAT
  • Wi-Fi: Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
  • Bluetooth: Yes
  • Mobile App Compatible: Yes: Android & iOS

Recording

  • Pulldown Conversion: No
  • Camera Trigger: SDI, HDMI
  • Pre-Roll Record: No
  • Encoding Formats: x / DNxHD / H.265 / ProRes
  • Metadata Tagging: Yes
  • Phantom Power: No

Power

  • DC Input Power: 6.2 to 16.8 VDC
  • Built-In Battery: No
  • Battery Type: 1 x L-Series

Environmental

  • Environmental Protection: No
  • Operating Temperature: 40°C

General

  • Material of Construction: Aluminium, Polycarbonate
  • Dimensions: 19.8 x 13.3 x 4 cm
  • Weight: 730 g

What's in the Box?

  • Atomos Shogun Ultra 7-inch monitor-recorder with integrated networking

MPN: ATOMSHGU01

Barcode: 0814164022835

Finance

Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest gear from Castle Cameras today.

There are various options available, including (subject to promotion) interest free credit.  If finance options are available, they will show as 'Finance Available' directly under the price.  Click on that grey button and it will show you all the finance options available on that product and the monthly instalments.

Find more details about our Finance terms here.  If you need any further information, please call our team on 01202 526606 or Contact us.

Atomos Shogun Ultra 7-inch monitor-recorder with integrated networking

£1,198.00

No stock on site. Please contact us for availability

Product Summary

  • Up to eleven - The new AtomOS 11 brings new abilities plus a larger 7 inch super bright screen.
  • Stay connected - Fully integrated with cloud connectivity, Wi-Fi 6, USB-C, SDI Out and more.
  • Its RAW - The new Shogun Ultra can capture up to 8K RAW and is capable of 4K dual recording.
  • Updated codecs - 8K Apple ProRes Raw, H.265 and DNx are a few of the free and included codecs available for you to select .
  • Prefessional monitoring tools - Waveforms, aspect ratios, anamorphic de-squeeze and false colour are just a few ways of helping you get the correct exposure and framing.
