Atomos Atomos AtomX CAST
Enlarge

Product Description

Atomos AtomX CAST Convert your Ninja V or Ninja V+ 5 inch monitor into a full multi camera broadcast studio switcher with the AtomX CAST from Atomos.The CAST is specially designed to mount onto the back of the Ninja V/V+ monitor, and it provides four HDMI inputs that support a mix of different resolutions... read more

Atomos AtomX CAST

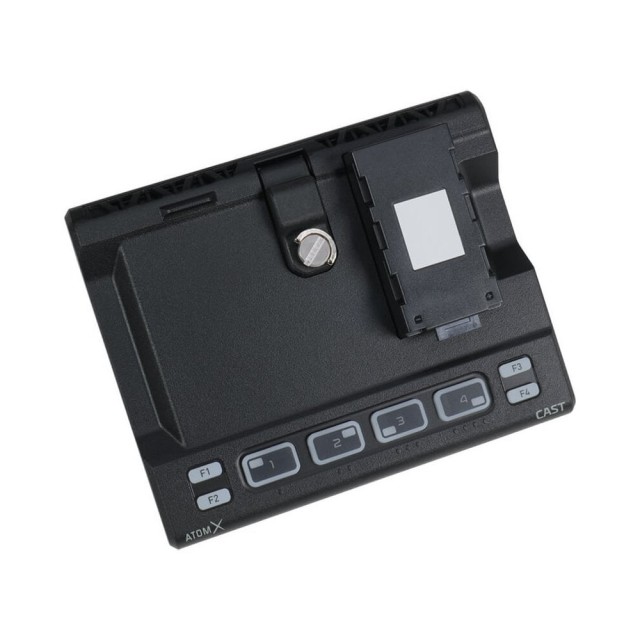

Convert your Ninja V or Ninja V+ 5 inch monitor into a full multi camera broadcast studio switcher with the AtomX CAST from Atomos.The CAST is specially designed to mount onto the back of the Ninja V/V+ monitor, and it provides four HDMI inputs that support a mix of different resolutions up to 1080p60. This system allows you to output it to a variety of destinations such as an external monitor, a recorder, a separate switcher, or to a live streaming computer.

The touchscreen monitor can view a single image, picture in picture, or 4 Up modes, and you can also add logos and graphic overlays. It can send program, preview, picture in picture, and 4 Up displays to the HDMI output. You can select the source for monitor/output using the four source buttons, and you can also select the source using the monitor touchscreen. There are also four programmable function buttons to perform specific shortcuts.


The monitor allows you to preview your broadcast while simultaneously outputting to a recorder, a monitor, a projector, or when using the optional AtomX Connect for live streaming using a computer.It also supports recording output to ProRes and Avid DNx formats. It is compatible with most streaming platforms such as Skype, Zoom, Teams, and more using UVC with the included USB Type-C cable. The CAST is powered using the power adapter included with your Ninja V/V+, and it passes the power on to the monitor through the battery mount.



read less

MPN: AO-ATOMXCST01

Barcode: 814164022422

Atomos AtomX CAST Specification

General
Compatibility Atomos Ninja V
Atomos Ninja V+
Display
Panel Type LCD
Size Not Specified by Manufacturer
USB I/O USB-C Female Output
Video I/O 4 x HDMI Input
1 x HDMI Output
Power
Power Source AC Input
DC Input Power 6.2 to 16.8 VDC
Physical
Mounting Bottom:1/4 inch thread
Bottom:3/8 inch thread
Material of Construction Plastic
Dimensions 160 x 129 x 49 mm
Weight 485 g

MPN: AO-ATOMXCST01

Barcode: 814164022422

Finance

Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest gear from Castle Cameras today.

There are various options available, including (subject to promotion) interest free credit.  If finance options are available, they will show as 'Finance Available' directly under the price.  Click on that grey button and it will show you all the finance options available on that product and the monthly instalments.

Find more details about our Finance terms here.  If you need any further information, please call our team on 01202 526606 or Contact us.

Atomos AtomX CAST

£129.00
WAS £179.00
YOU SAVE £50.00

in stock Limited Stock

£50.00 June Saving subject to availability

One Year UK Warranty

Product Summary

  • AtomX CAST is for video creators or anyone who wants to make broadcast quality multi-camera programmes simply and quickly from anywhere.
  • Add professional broadcast quality features to online meetings, presentations, remote learning/training etc.
  • One of the benefits of using CAST with a multi-camera setup, is that you can use the Picture-in-Picture function to display two inputs at the same time.
