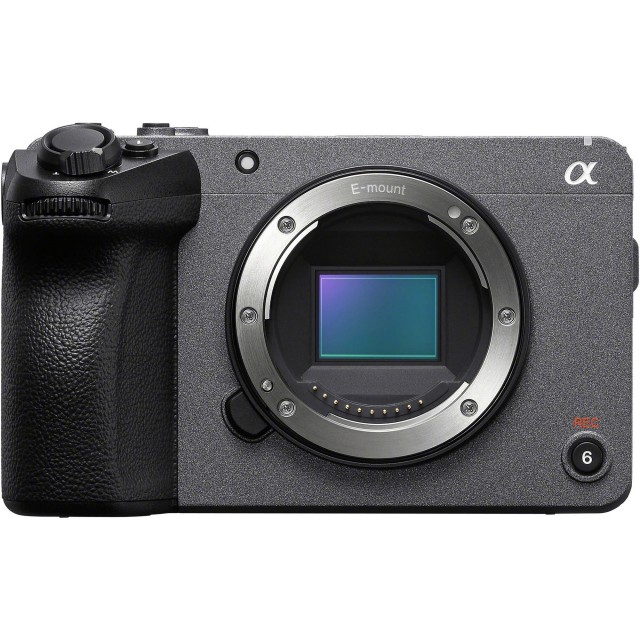

Sony FX-30 Cinema Line camera with XLR Handle

Leap into the world of filmmaking with the compact FX30

Enjoy hassle-free shooting with S-Cinetone™ and S-Log3 for high level grading plus numerous other features. The compact FX30 makes filmmaking more accessible than ever for up-and-coming creators.

• 26.1MP APS-C BSI CMOS Sensor
• UHD 4K up to 120p
• Compact Form Designed for Cage-Free Use
• 10-Bit 4:2:2 XAVC S-I,16-Bit Raw Output
• S-Cinetone/S-Log3/HLG, 14+ Stops DR
• Phase Detection AF/Face Tracking/Eye AF
• Standard ISO 100-32000 | Dual Base ISO
• Dual CFexpress Type A/SDXC Card Slots
• User LUTs & Timecode Sync Support

Memorable imagery from the Exmor R™ CMOS sensor

The FX30's back-illuminated Exmor R APS-C CMOS sensor is ready to deliver memorable imagery with outstanding resolution and a shallow depth of field. Sony's industry-leading image technology is packed into a new Super 35 format (20.1 megapixel1) sensor with wide latitude. Capture the scene in 4K resolution with expressive depth of field, stunning bokeh, and cinematic freedom.

S-Cinetone™ for a cinematic look without grading

The FX30 incorporates S-Cinetone, based on the colour science behind the highly regarded colour and skin tones of the FX9 and FX6. It delivers the natural mid-tones that are essential to healthy-looking skin, plus soft colours and gorgeous highlights. Because S-Cinetone produces all this directly within the camera, it's easy to achieve a beautiful cinematic look without the necessity of post-production grading.

Recording formats for image quality and  post-production

The FX30 can record 10-bit 4:2:2 video internally when using Long GOP or All-Intra compression, enabling fuller and more natural gradations and providing greater editing freedom. Recording in XAVC HS format roughly doubles compression efficiency23, allowing detailed 10-bit video with 4:2:2 colour sampling at comparable or lower data rates, for even better image quality and manageable file sizes.

Dual Base ISO for cleaner images in low light

The Dual Base ISO feature provides two Base ISO settings; one at ISO 800 and one at ISO 2500. This allows you to select an appropriate noise floor, for clean images, as well as maximise the FX30’s dynamic range when shooting in both bright or low-light conditions. What's more, a wide 14+ stops5 of latitude minimises the risk of blown highlights or blocked shadows over a wide range of lighting conditions.

Log recording for smooth cinematic colour grading

For full-scale productions, the S-Log3 gamma curve provided in the FX30 has been designed for smooth gradations, and to make it easier to achieve cinematic image quality when colour grading in post-production. Both S-Log3 and S-Gamut3.Cine offer high-quality colour reproduction over a wide latitude, and special care has been taken to adjust the camera's output to ensure that the highest image quality can be easily achieved during post processing.

See an accurate preview of the final image with user LUTs

When recording with the S-Log3 gamma curve, the low-contrast image on the monitor can make it difficult to judge what the final image will look like. For a more accurate preview, the FX30 allows customisable LUTs to be applied to the LCD monitor preview and HDMI output, and also embedded in clips to facilitate post-production processing7. In addition to the preset LUTs, up to 16 user LUTs can be imported into the camera via memory card8.

De-squeeze display9 for anamorphic lens

When shooting with anamorphic lenses, you can choose a de-squeeze ratio (1.3 x or 2.0 x) in the menu to display the movie with horizontal correction on the LCD monitor, according to the ratio of the attached anamorphic lens. This setting is available in software version 2.00 or later.

Dependable, highly accurate autofocus

Sophisticated tracking features keep your subject in steady focus so you can concentrate on composition. Wide-area AF, with intelligent tracking, uses focal-plane phase-detection for tenacious subject tracking across almost the entire frame. Real-time Eye AF ensures precise focus on the face and eyes (for humans, birds and animals), while Real-time Tracking provides reliable tracking based on Sony's unique, AI-based subject recognition.

Sophisticated focus functions to handle any situation

The FX30 makes fast, accurate focusing as easy as possible. AF Assist11 smoothly switches between auto and manual focus, it enables easy rack focusing, and it can save time even when you are primarily using manual focus. Focus Map12 makes it easy to visualise depth of field while shooting, and Breathing Compensation13 provides a stable angle of view when rack focusing by minimising the field-of-view shift that can occur with some lenses.

Flexible motion with up to 4K / 120p recording

The FX30 provides 4K recording at up to 120 frames per second14. Extraordinarily smooth 5x (max.) slow-motion imagery15 with autofocus provides new expressive capability, opening a whole new world of creative potential.

Still image shooting function

Because the FX30 can shoot stills as well as movies, it can be handy to use when you are location hunting. For example, you can use it to shoot stills that will be used in storyboards or pre-production presentations.

New main menu for quick access to frequently used items

The camera’s new list-style main menu gives you access to frame rate20, shutter speed or shutter angle, and other essential shooting parameters. Main menu display can be assigned to a custom button so that parameters can be quickly checked and edited as needed prior to shooting.

Movie standby screen

The layout of the information and icon overlay that appears in standby mode has been optimised for movie recording so you can concentrate more fully on composition and framing. Only the most essential items are displayed in the black bands above and below the image area.

Tally lamps

Recording (tally) lamps are provided on the upper front and rear of the camera. The REC button on the top of the camera is also illuminated and linked to the rear recording lamp. To make it clear when the camera is in record mode, a red frame appears on the monitor display so that the operator can easily confirm that recording is in progress.

Flexible, high-resolution touch-panel LCD monitor

The FX30 features a side-opening vari-angle rear monitor that allows broad positioning and framing freedom for gimbal-mounted shots, handheld shots, very low ground-level shots, or whatever the shoot requires. The large 3.0 type 2.36 million-dot21 touch-panel LCD monitor provides clear viewing in bright outdoor settings. The function (Fn) menu can be displayed by swiping up on the monitor, for quick access to frequently used assigned functions.

Vertical aspect markers

With the proliferation of smartphones and social media, creators are producing imagery with a variety of aspect ratios and orientations, with vertical orientation becoming more common. The FX30 offers a number of aspect markers that can be used to check framing while shooting in standard horizontal orientation. Aspect markers that are useful when shooting social media ads and vertical movies are included.

XLR connectors for high-quality external audio input

The XLR handle unit19 provides two XLR audio inputs to facilitate high-quality audio recording. With an optional XLR microphone, digital audio data can be transferred directly to the camera for outstanding audio quality without noise or signal degradation. There is also a 3.5 mm stereo mini jack for 4-channel recording, for compatibility with 2-channel and 4-channel audio formats.

Broad connectivity for a wide range of shooting needs

An HDMI Type-A connector can be used to feed 4K, 16-bit RAW22, or other movie formats to an external recorder or display device, with the option of status overlays included in the HDMI output. Other connectors include USB Type-C® , Multi/Micro-USB, mic, headphone, and a Multi Interface (MI) Shoe with built-in digital audio interface. The FX30 also supports UVC (USB Video Class) and UAC (USB Audio Class) standards and can serve as a high-performance streaming camera or webcam.

Two CFexpress Type A compatible media slots

The camera's two media slots are compatible with CFexpress Type A cards as well as SDXC/SDHC cards supporting UHS-I and UHS-II speed classes. CFexpress Type A cards are the next standard for compact storage with fast write/read speeds suitable for 4K movie recording at high bitrates. Dual slots enable either relay or simultaneous recording.

Uninterrupted 4K 60p26 recording

For uninterrupted 4K 60p recording, the FX30 features an innovative heat dissipation structure, including a unique Sony Σ (sigma) shaped graphite-alloy heatsink. A complete internal redesign optimised the camera’s airflow and heatsink placement. When required, a silent cooling fan provides ventilation for continuous recording at full resolution, with intake and exhaust air structurally isolated to maintain strong dust and moisture resistance.

Designed to resist dust and moisture

Dust and moisture resistance refinements have been implemented everywhere in the FX30. Sealing is provided throughout the body as well as on the battery compartment cover, and the media slot has a double sliding cover and lock lever to keep water out. Cooling airflow, from inlet to exhaust, is completely isolated from the interior. All routes for dust and moisture entry have been examined to ensure reliable operation in challenging environments.
