Product Description

MPN: 3637C011

Specifications

• 4K movies & 3.5mm mic input
• 120fps Full HD movies

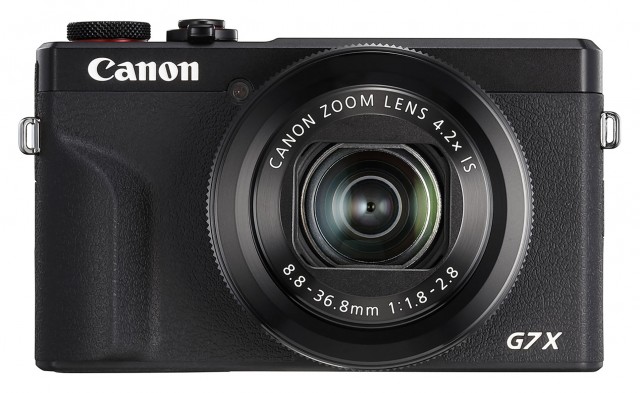

• Wide-angle zoom in a compact body: f1.8-2.8 24mm 4.2x zoom
• 20.1 megapixel 1.0-type stacked CMOS sensor
• Tilt-up screen
• Bluetooth and Wi-Fi
• Live Stream to YouTube
• USB Charging
• Operating Environment: 0 – 40 °C, 10 – 90% humidity
• Power: NB-13L (included)
• Dimensions: 10.55W x 6.09H x 4.14D cm
• Weight: approx. 304 g

Image Sensor

Type

1.0 type stacked CMOS

Effective Pixels

Approx. 20.1M (Aspect ratio 3:2)¹

Total Pixels

Approx. 20.9M

Colour Filter Type

Primary Colour

Image Processor

Type

DIGIC 8

Lens

Focal Length

8.8 – 36.8 mm (35 mm equivalent: 24 – 100 mm)

Zoom

Optical 4.2x

ZoomPlus 8.4x

Digital Approx. 4x (with Digital Tele-Converter approx. 1.6x or 2.0x ²)

Combined approx. 17x

Maximum f/number

f/1.8-f/2.8

Construction

11 elements in 9 groups (1 double sided aspherical lens, 1 single sided aspherical UA lens, 1 single sided aspherical lens and 1 UD lens)

Image Stabilisation

Yes (lens shift-type), approx. 4-stop ³.

Intelligent IS with 5-axis Advanced Dynamic IS & Auto Level

Focusing

Type

TTL

AF System/ Points

AiAF (31-point, Face Detection or Touch AF with Object and Face Select and Track), 1-point AF (any position is available or fixed centre)

AF Modes

Single, Continuous, Servo AF/AE ⁴, Touch AF

AF Point Selection

Size (Normal, Small)

AF Lock

Yes, via customisable buttons

AF Assist Beam

Yes

Manual Focus

Yes, plus MF Peaking

Focus Bracketing

Yes

Closest Focusing Distance

5 cm (Wide) from front of lens

40 cm (Tele) from front of lens

Exposure Control

Metering modes

Evaluative (linked to Face Detection AF frame), Centre-weighted average, Spot

AE Lock

Yes

Exposure Compensation

+/- 3 EV in 1/3 stop increments

Auto Lighting Optimizer

ND Filter (3-stop) On / Auto / Off ⁵

AEB

1/3 – 2 EV in 1/3 stop increments

ISO Sensitivity

125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800 (Expanded: 25600) ⁶

AUTO ISO: 125 - 12800 (possible to set Max. ISO speed and rate of change)

Shutter

Speed

1 – 1/2000 s (factory default)

30 - 1/25600 s (electronic shutter)

1/8 - 1/2000 s (Movie Mode)

BULB, 30 – 1/2000 s (total range – varies by shooting mode) ⁷

White Balance

Type

TTL

Settings

Auto (Ambience priority / White priority), Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash, Custom, Color temp (Kelvin)

White Balance Compensation

Colour adjustment in Star mode

Colour Matrix

Type

sRGB

LCD Monitor

Monitor

Tilt type 7.5 cm (3.0”) Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,040,000 dots. Capacitive type, sRGB colour reproduction

Coverage

Approx. 100%

Brightness

Adjustable to one of five levels.

Night Display Mode available

Flash

Modes

Auto, Manual Flash On / Off, Slow Synchro

X-Sync Speed

Yes. Fastest speed 1/2000 s

Red-Eye Reduction

Yes

Flash Exposure Compensation

+/- 2 EV in 1/3 stop increments. Face Detection FE, Safety FE

Flash Exposure Lock

Yes

Manual Power Adjustment

3 levels with internal flash

Second Curtain Synchronisation

Yes

Built-in Flash Range

50 cm – 7.0 m (W) / 40 cm – 4.0 m (T)

External Flash

Canon High Power Flash HF-DC2

Shooting

Modes

Auto, Program AE, Shutter priority AE, Aperture priority AE, Manual, Custom, Hybrid Auto, SCN (Portrait, Self-Portrait, Panning, Star (Star Portrait, Star Nightscape, Star Trails, Star Time-Lapse Movie), Handheld Night Scene, High Dynamic Range, Fish-eye Effect, Oil Painting Effect, Water-Painting Effect, Miniature Effect, Toy Camera Effect, Background Defocus, Soft Focus, Grainy B/W, Fireworks, Panoramic shot), Standard Movie, Short Clip, Manual Movie, Time-Lapse Movie

Photo Effects

Picture Styles (Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined x3 (Sharpness (Strength, Fineness, Threshold), Contrast, Color Saturation, Color Tone, Filtering Effect, Toning))

Drive modes

Single, Auto Drive, Continuous, Continuous with AF, Self-Timer

Continuous Shooting

Approx. 20.0 shots/s for up to 89 frames in C-RAW, 55 frames in RAW, and 118 frames in JPEG

With AF: Approx. 8 shots/s for up to 320 frames in JPEG

^8 9

RAW Burst Mode: Approx 30shots/s for Approx 70 frames

Recording Pixels / Compression

Image Size

3:2 - (RAW, L) 5472 x 3648, (M) 3648 x 2432, (S1) 2736 x 1824, (S2) 2400 x 1600

4:3 - (RAW, L) 4864 x 3648, (M) 3248 x 2432, (S1) 2432 x 1824, (S2) 2112 x 1600

16:9 - (RAW, L) 5472 x 3072, (M) 3648 x 2048, (S1) 2736 x 1536, (S2) 2400 x 1344

1:1 - (RAW, L) 3648 x 3648, (M) 2432 x 2432, (S1) 1824 x 1824, (S2) 1600 x 1600

In-camera RAW processing & Resize available

Compression

RAW, C-RAW, Fine/Normal JPEG

Movies

(4K) 3840 x 2160, 29.97 / 25fps

(Full HD) 1920 x 1080, , 119.9 / 100 / 59.94 / 50 / 29.97 / 25 fps

(HD) 1280 x 720, 50 fps

Vertical movie aspect available

Movie Length

(4K) Up to 9 min 59 s

(Full HD & HD) Up to 4 GB or 29 min 59 s ¹⁰

File Types

Still Image Type

JPEG compression (Exif 2.31 [Exif Print] compliant) / Design rule for Camera File system and DPOF ver. 1.1 compliant), RAW (Canon original RAW 3rd edition), RAW+JPEG

Movies

MP4 [Video: MPEG-4 AVC / H.264, Audio: MPEG-4 AAC-LC (stereo)]

Direct Print

Canon Printers

Canon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge

PictBridge

Yes (via USB or Wireless LAN)

Other Features

Microphone Input

Yes, 3.5mm

GPS

GPS via Mobile (linked to a compatible smartphone)

Red-Eye Correction

Yes, during playback

My Camera / My Menu

My Menu customisation available

Intelligent Orientation Sensor

Yes

Histogram

Yes

Playback zoom

Yes

Self Timer

Approx. 2, 10 s or Custom

Menu Languages

English, German, French, Dutch, Danish, Finnish, Italian, Greek, Norwegian, Portuguese, Russian, Swedish, Spanish, Ukrainian, Polish, Czech, Hungarian, Turkish, Simplified Chinese, Chinese (traditional), Japanese, Korean, Thai, Arabic, Romanian, Hindi, Malay, Indonesian, Vietnamese, Hebrew

Interface

Computer

USB type C connector

Other

HDMI Micro (Type-D) Connector

Computer/Other

Wi-Fi (IEEE802.11b/g/n), (2.4 GHz only)

Memory Card

Type

SD, SDHC, SDXC (UHS Speed Class 1 compatible)

Supported Operating System

PC & Macintosh

For version information see relevant software pages

For Wi-Fi connection to a PC:

Windows

MacOS

For Image Transfer Utility:

Windows

MacOS

¹¹

Software

Other

Image Transfer Utility 2

Camera Connect app available on iOS and Android devices

Image Manipulation

Digital Photo Professional (DPP) for RAW development

DPP Express for mobile RAW development

Power Source

Batteries

Rechargeable Li-ion Battery NB-13L (battery and charger supplied)

Battery life

Approx. 265 shots

Eco mode approx. 320 shots

Approx. 300 min playback

A/C Power Supply

Charging via USB available with USB Power Adapter PD-E1

Other

Interface Cable IFC-100U

All data is based on Canon standard testing methods (according to CIPA Standards) except where indicated.

Subject to change without notice.

1. Image processing may cause a decrease in the number of pixels.
2. Depending on the image size selected.
3. Values at maximum optical focal length. Cameras whose focal length exceeds 350 mm (35 mm equivalent) are measured at 350 mm.
4. Some settings limit availability.
5. Auto ND Filter not available in Movie Mode.
6. ISO sensitivity denotes Recommended Exposure Index
7. Maximum shutter speed is limited at 256 s in BULB Mode
8. Under conditions where the flash does not fire.
9. Sustained continuous shooting speed is tested based on Canon's testing standard. Function requires compatible UHS-I Speed Class 3 memory card, total number of frames captured varies depending on shooting subject, settings and brand of memory card
10. The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 SD Speed Class 4 or above. (Full HD) 1920 x 1080 SD Speed Class 6 or above. (4K) 3840 x 2160 UHS-I Speed class 3
11. Software applications compatible with Windows 10 in Windows 10 Desktop Mode only

MPN: 3637C011
