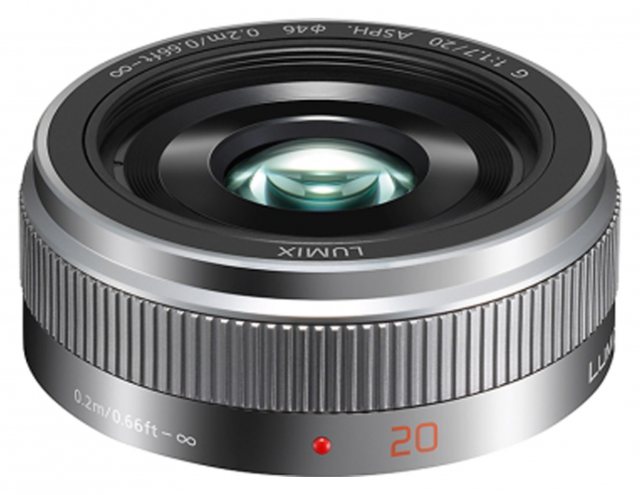

Panasonic 020mm f1.7 II Pancake lens, silver
Enlarge

Product Description

Panasonic 20mm f1.7 II Pancake lens, Silver Superb optical performance with bright f1.7 optics, encompassed into a thin 25.5mm depth. Two aspherical elements ensure the image is pinpoint sharp, while the circular aperture design gives the areas that are out-of-focus a pleasant and smooth appearance. This... read more

Panasonic 20mm f1.7 II Pancake lens, Silver

Superb optical performance with bright f1.7 optics, encompassed into a thin 25.5mm depth. Two aspherical elements ensure the image is pinpoint sharp, while the circular aperture design gives the areas that are out-of-focus a pleasant and smooth appearance.

This Micro Four Thirds lens which supports Contrast AF and therefore Face Recognition also has multi-coated elements to reduce ghosting and flare.

  • Slightly wider-than-normal prime is designed for Micro Four Thirds mirrorless cameras and offers a 40mm equivalent focal length

  • Bright f/1.7 maximum aperture benefits working in low-light conditions and also affords greater control over depth of field for working with selective focus techniques

  • Two aspherical elements are used to reduce spherical aberrations and distortion in order to realize greater sharpness and resolution

  • Individual elements have been multi-coated to effectively reduce lens flare and ghosting for improved contrast when working in strong lighting conditions

  • Autofocus motor supports camera's contrast detection for precise focusing performance. AF can also be manually overridden for more fine-tuned control

  • Pancake form factor measures just 1"-thick, making it ideal for everyday and travel use.

  • Rounded seven-blade diaphragm contributes to a pleasing bokeh quality

read less

MPN: H-H020AE-S

Barcode: 5025232754052

Panasonic 20mm f1.7 II Pancake lens, silver Specification

  • Lens Construction 7 elements in 5 groups (2 Aspherical lenses)
  • Mount Micro Four Thirds mount
  • Optical Image Stabilizer No
  • Focal Length f=20mm (35mm camera equivalent 40mm)
  • Aperture Type 7 diaphragm blades / Circular aperture diaphragm
  • Aperture F1.7
  • Minimum Aperture F16
  • Closest Focusing Distance 0.2m / 0.66ft
  • Maximum magnification Approx. 0.13x / 0.25x (35mm camera equivalent)
  • Diagonal Angle of View 57°
  • Filter Size φ46mm / 1.81 in
  • Max. Diameter φ63mm / 2.48 in
  • Overall Length Approx. 25.5mm / 1.00 in
  • Weight Approx. 87g / 3.07oz

MPN: H-H020AE-S

Barcode: 5025232754052
