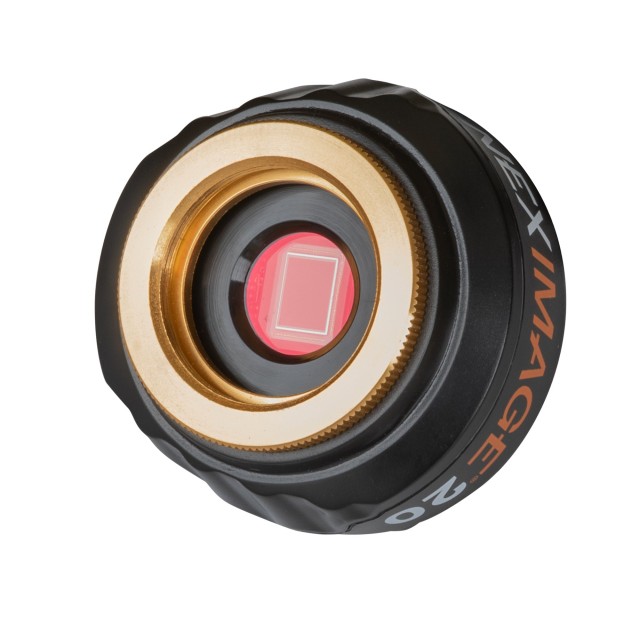

Celestron Celestron NexImage 20 Solar System Colour Imager
Enlarge

Product Code: HK31380

Product Description

Celestron NexImage 20 Solar System Colour Imager Capture your own stunning images of the planets, Moon, and Sun (with solar filter) with the Celestron NexImage 20. Our team engineered this high-performance USB camera for serious astrophotography. With a powerful 20 MP back-illuminated CMOS sensor, NexImage... read more

Celestron NexImage 20 Solar System Colour Imager

Capture your own stunning images of the planets, Moon, and Sun (with solar filter) with the Celestron NexImage 20. Our team engineered this high-performance USB camera for serious astrophotography. With a powerful 20 MP back-illuminated CMOS sensor, NexImage 20 captures ultra-high-resolution images at 5240 x 3840 pixels, giving you crisp, detailed results ready for stacking, printing, and sharing online.

NexImage 20 is one of the best values in Solar System imaging today, delivering impressive detail and producing images that rival those from cameras costing hundreds more. It's an excellent way to get started with astroimaging—even from light-polluted city skies. If you can see a planet through your telescope, you can capture it with NexImage 20!

Advanced Sensor Technology

At its core is the AR2020 sensor, optimized for low-light conditions with 1.4 µm square pixels on a 7.3 x 5.4 mm sensor. This combination delivers impressive sensitivity (8.7 ke?/lux-sec) and allows you to capture fine surface features, even when atmospheric seeing isn’t ideal.

Includes a free download of Celestron’s iCap software to fine-tune exposure, gain, frame rate, and more—unlocking the sensor’s full potential.

Easy Installation

Even if you’re brand new to astroimaging, getting started with NexImage 20 is fast and straightforward. After installing the driver and iCap software, assemble the camera by threading it onto the included 1.25” nosepiece. Then insert it into your telescope’s eyepiece holder, connect the USB-C cable to the camera, and plug the USB-A end into your PC. That’s it; you’re ready to capture your first high-resolution images and videos!

Region of Interest for Speed & Efficiency

Imaging the Full Moon or Sun will use a large portion of the NexImage 20 sensor. But if you’re pointing your telescope at the planets, the Region of Interest (ROI) feature is a game changer. Instead of using the entire sensor, ROI lets you crop to focus on just your target. This boosts frame rates for smoother video while reducing file size. It also speeds up post-processing, especially when you’re stacking multiple frames.

Built-In Autoguiding Capability

Beyond imaging, NexImage 20 can perform double-duty in your advanced astroimaging kit. Use it as a precise autoguider for long-exposure, deep-sky astrophotography. With additional guiding hardware (not included), NexImage 20 helps advanced users lock onto their target and maintain tracking accuracy over time.

read less

MPN: 93707-CGL

Barcode: 050234937078

Celestron NexImage 20 Solar System Colour Imager Specification

  • Color or Monochrome: Color

  • Power Requirements: Powered by USB

  • USB: High-Speed USB 3.0 (10' cable included)

  • Camera Housing Construction: ABS with aluminum connection ring

  • Optical Window: IR Cutoff Filter

  • Pixel Size: 1.4 micron square

  • A/D Conversion: 10-bit RAW

  • Imaging Sensor: Sony AR2020 Back-Illuminated CMOS

  • Camera Resolution (Pixels): 5240 x 3840

  • Total Number of Pixels: 20 MP

  • Mounting: 1.25' barrel and C-thread

  • Sensor Size: 7.3 mm x 5.4 mm (9 mm diagonal)

  • Shutter: Electronic Rolling Shutter

  • Software Compatibility: iCap | IC Capture | DirectShow | oaCapture

  • Operating Environment: -40°F to 104°F (-40°C to 40°C)

  • Sub-Framing: Hardware ROI

  • Exposure Range: 0.0001 to 10 seconds

  • Frames Per Second: Up to 90 fps (8 fps at full frame)

  • Back Focus Distance:

    • 13.1 mm (0.51') with nosepiece

    • 10.6 mm (0.41') without nosepiece

  • Recommended/Best Usage: Getting started in lunar, solar, and planetary imaging

  • Weight: 2.0 oz (57 g)

INCLUDED ITEMS

  • NexImage 20 camera body

  • 1.25' nosepiece

  • USB cable

  • Instruction manual

MPN: 93707-CGL

Barcode: 050234937078

Finance

Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest gear from Castle Cameras today.

There are various options available, including (subject to promotion) interest free credit.  If finance options are available, they will show as 'Finance Available' directly under the price.  Click on that grey button and it will show you all the finance options available on that product and the monthly instalments.

Find more details about our Finance terms here.  If you need any further information, please call our team on 01202 526606 or Contact us.

Celestron NexImage 20 Solar System Colour Imager

£449.00

in stock In Stock

Two Year UK Warranty

Product Summary

  • Capture ultra-high res images and video - Intuitive yet powerful, this camera captures detailed 20 MP (5240 x 3840) stills and smooth AVI video .
  • Easily stack your frames - Create high-quality prints, or share your results online.
  • Back illuminated CMOS sensor features 1.4 µm pixels on a 7.3 x 5.4 mm sensor - With 8.7 ke/lux-sec sensitivity, it captures crisp detail even in challenging seeing conditions.
  • NexImage 20 slides directly into your telescope’s 1.25” eyepiece holder using the included nosepiece - No adapters needed.
  • Crop the frame to capture just your target perfect for small objects like planets - ROI increases frame rate for smoother video, reduces file size, and speeds up stacking and post-processing.
  • Easy connection to your computer - Simply connect the NexImage 20 to your Windows PC via the included USB-A to USB-C cable.
