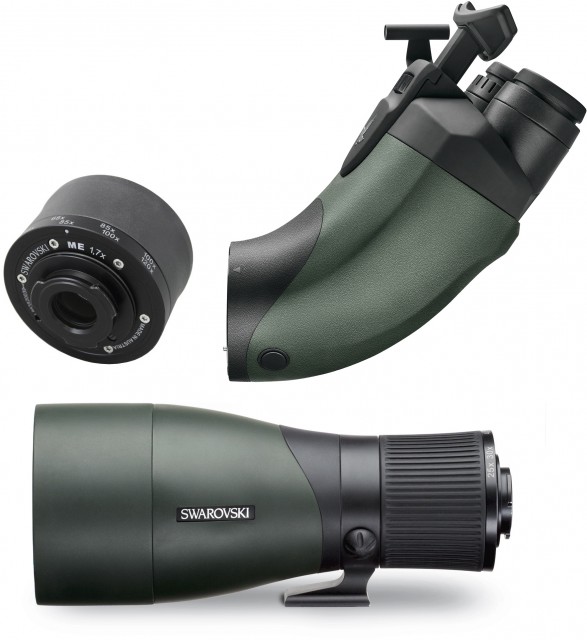

Swarovski 85mm Objective Module plus BTX Eyepiece and ME 1.7x
Enlarge

Product Description

Swarovski 85mm Objective ModuleThe powerful all-rounder - With the 85 mm objective module you can be prepared for any situation. Its large field of view and zoom range enable quick and precise observation. Excellent light transmission, zoom range, and close-range focusing (11.8 ft / 3.6 m) also make... read more

Swarovski 85mm Objective Module

The powerful all-rounder - With the 85 mm objective module you can be prepared for any situation. Its large field of view and zoom range enable quick and precise observation. Excellent light transmission, zoom range, and close-range focusing (11.8 ft / 3.6 m) also make it an ideal tool for digiscoping.

Swarovski BTX Eyepiece

The BTX combines the visual power of both eyes with a revolutionary viewing experience. Crucial subtleties can be seen with the crystal clear optics, with every detail now fully on show.

A forehead rest and angled view guarantee comfortable viewing for hours on end. The benefits of binoculars and spotting scopes are combined in the BTX eyepiece module. It presents vivid, true-to-life images and offers the comfort required for long-term observation.

The BTX eyepiece module is compatible with all objective lenses in the Swarovski Optik ATX/STX range.

Taking functionality to a new level: the ATX/STX/BTX spotting scope system combines exceptionally flexible modularity with optical perfection. The objective lens can be changed to suit any viewing situation. Extreme detail recognition at crucial moments thanks to SWAROVISION technology and total ease of use ensure fascinating experiences in the great outdoors.

Swarovski ME 1.7x Magnification Extender

The ME 1.7x magnification extender increases the magnification by a factor of 1.7.

You can quickly and easily attach it using the bayonet catch to all the objective and eyepiece modules in the ATX/STX/BTX family.

In the case of the BTX 65 and 85, the magnification increases from 30x to 50x, and from 35x to 60x for the BTX 95.

read less

MPN: 85+BTX+ME

Barcode: 426103

Swarovski 85mm Objective Module plus BTX Eyepiece and ME 1.7x Specification

Swarovski 85mm Objective Module plus BTX eyepiece

  • Magnification: 25-60x
  • Effective objective lens diameter: 8.5cm
  • Exit pupil diameter: 3.4-1.4mm
  • Eye relief: 20mm
  • Field of view (m/1000m): 41-23m
  • Field of view (degrees): 2.37-1.30
  • Field of view, apparent (degrees): 57-71
  • Closest focusing distance: 3.6m
  • Diopter correction at ∞ (dpt): > 5
  • Light transmission total product: 86%
  • Objective filter thread: M 87 x 0.75
  • Length: 24cm
  • Weight: 1100g
  • Focal length with TLS APO (mm): 750-1800
  • Functional temperature: -13 °F to 131 °F (-25 °C / 55 °C)
  • Storage temperature: -22 °F to 158 °F (-30 °C / 70 °C)
  • Submersion tightness: 13 ft / 4 m water depth (filled with nitrogen)

Swarovski BTX eyepiece

  • Length: 17.4 cm
  • Weight: 1420 g
  • Functional temperature: -25 °C to 55 °C
  • Storage temperature: -30 °C to 70 °C
  • Submersion tightness: 4m water depth (inert gas filling)

MPN: 85+BTX+ME

Barcode: 426103
