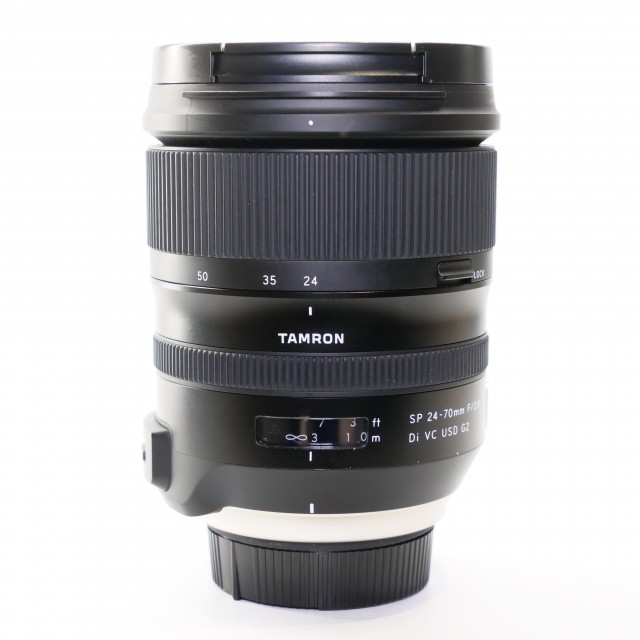

Tamron SP AF 24-70 F2.8 Di VC USD lens for Nikon DSLR cameras

High-speed standard zoom with built-in image stabilisation, weatherproof and full-frame coverage


USD (Ultrasonic Silent Drive)

XR (Extra Refractive Index) glass

VC (Vibration Compensation)

Moisture resistant construction

Minimum focus distance: 0.38m (15 inches)

Includes lens hood

Filter size: 82mm

Dimensions: 8.82D x 11.69L cm

Weight: 825g


A full-size, high-speed standard zoom with built-in VC (Vibration Compensation). Even when shooting in low-light conditions with a slow shutter speed to render sharpness, Tamron's acclaimed VC allows for stable handheld camera work, to more fully enjoy the benefits of this high-speed zoom lens.

Uses special high-grade glass in the three LD elements, three glass molded aspherical lenses, one hybrid aspherical lens and two XR (Extra Refractive Index) glasses, delivering top-of-the-class quality images suited to this high-grade lens. Using a rounded diaphragm, the lens achieves gorgeous blur effects. This rounded diaphragm retains a nearly circular shape even when taken two stops down from its fully open state.

Features Tamron proprietary USD (Ultrasonic Silent Drive) to power a speedy AF drive together with a continuous manual mechanism.

This high-speed standard zoom lens has a wide-end focal length of 24mm that expands the photographic area.

The lens adopts the new technology including the latest optical design, VC (Vibration Compensation) image stabilization and USD (Ultrasonic Silent Drive), all in a lighter and more compact package.

Moisture-resistant construction helps prevent water from penetrating the lens.

VC (Vibration Compensation) is Tamron's proprietary image stabilization system. Tamron's VC is a three-coil system, whereby three driving coils activate the shake-compensating VC lens group electromagnetically via three steel balls. The VC lens elements are held in place only by contact with the steel balls, achieving smooth movement with little friction. This provides a stable viewfinder image with excellent tracking performance. And as the VC lens may be moved in parallel using only the motorized control, the mechanical structure has been simplified, enabling the creation of a more compact lens.

Tamron's original VC image stabilization mechanism utilized a moving magnet system whereby a heavy magnet was positioned near the moving VC lens element. In the new VC unit the positions of the magnet and the coil are reversed, because of this the VC optical lens element is attached to the coil. The new VC mechanism employs a moving coil mechanism with a lightweight coil, and the lighter coil reduces the load on the drive system. Thus, the lighter, more compact new VC unit contributes to the lens's overall light weight and compact size.

Because the 24-70 mm F/2.8 Di VC USD is a high-speed zoom lens with maximum aperture of F/2.8, its VC system must drive a lens that is larger and heavier than other zooms. Therefore, the shape, size and layout of the drive coils are all designed to obtain sufficient thrust. The result is a full-size, high-speed zoom that provides the same high level of compensation effect.

In the ultrasonic motor, a piezoelectric element arranged in a ring formation generates ultrasonic vibrations in a metallic ring stator, and the vibration energy is used to rotate a metallic ring rotor that is attached to the stator. The rotation energy is in turn transferred from the metallic ring rotor to operate the focus lens. read less
