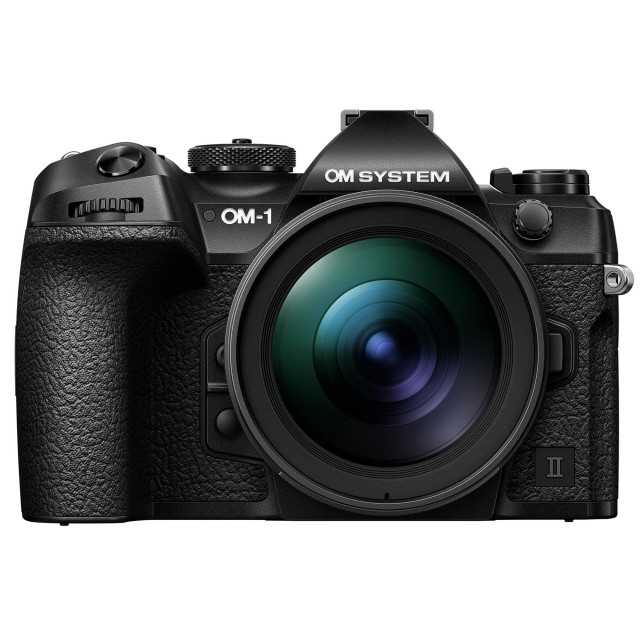

OM System OM System OM-1 Mark II Mirrorless Camera with 12-40mm MkII F2.8 lens

Product Description

OM System OM-1 Mark II Mirrorless Camera with 12-40mm MkII F2.8 lens The new flagship OM SYSTEM OM-1 Mark II This Micro Four Thirds System interchangeable lens camera introduces a new global standard with the Live GND photography function. This groundbreaking feature harnesses computational photography... read more

OM System OM-1 Mark II Mirrorless Camera with 12-40mm MkII F2.8 lens

The new flagship OM SYSTEM OM-1 Mark II

This Micro Four Thirds System interchangeable lens camera introduces a new global standard with the Live GND photography function. This groundbreaking feature harnesses computational photography to replicate the effects of a Graduated ND filter, allowing users to adjust filter steps and types in real-time through the EVF or rear screen.

Crafted to withstand the most rugged outdoor conditions, the OM SYSTEM OM-1 Mark II boasts an IP53-class splash & dustproof design, coupled with a robust body built to withstand freezing temperatures down to -10°C.

Featuring cutting-edge technology, up to 8.5 steps of 5-axis in-body image stabilization, a 20 Megapixel stacked BSI Live MOS sensor, and the latest TruePic X image processor, symbolising the birth of a new flagship model bearing the OM SYSTEM brand.

  • 20MP Stacked BSI Live MOS MFT Sensor
  • DCI/UHD 4K 60p 14-Bit Video Recording
  • 10 fps Shooting, 120 fps with E. Shutter
  • Cross Quad Pixel Phase-Detection AF
  • 5.76m-Dot OLED Electronic Viewfinder
  • 3.0" 1.62m-Dot Swivel Touchscreen LCD
  • 5-Axis In-Body Image Stabilization
  • High-Res Shot, Live ND & Composite Modes
  • IP53 Weather-Sealed & Freezeproof Design
  • Dual UHS-II SD Card Slots

The AI Detection AF, developed using deep learning technologies, recognizes a wide spectrum of subjects, including birds, animals, cars and more, now includes humans, enhancing autofocusing for exceptional clarity, even under the most challenging conditions.

Elevating high-speed shooting performance, the OM-1 Mark II's enhanced memory allows for an increased number of sequential shots. With Pro Capture, users can seize fleeting moments at up to 120 fps during AF/AE lock and approximately 50 fps during AF/AE tracking.

From improved grip surfaces to vertical video support, the OM-1 Mark II caters to user comfort and convenience. Additionally, it supports UVC/UAC connections to PCs for webcam use, catering to modern connectivity needs and an intuitive experience.

Cross Quad Pixel AF

1053 individual focus points are made available by the OM-1 Mark II's comprehensive Cross Quad Pixel autofocus system, allowing the camera to catch focus nearly anywhere on the sensor. With this design, the camera automatically detects subjects such as birds, humans, animals, cars, airplanes, and trains in order to keep them in focus and track their movements. This Cross Quad Pixel AF algorithm paired with the TruePic X processor promises a high-speed, reliable focusing performance.

Designed for the Elements

IP53 rated, the OM-1 Mark II offers superior weather protection and withstands some of the harshest conditions in the field. Its tough construction renders the camera freezeproof, dust and splash resistant, and operable at temperatures as low as -10°C.

Video Capabilities

DCI & UHD 4K video recording are supported at up to 60p and 10-bit 4:2:0 sampling. Full HD recording is possible at high-speed rates up to 240 fps for slow-motion playback.

Vertical video is now available, opening up more compositional options when shooting and saving you time in post production.

Live ND

Supporting up to ND128, this function digitally simulates the effects of an optical neutral density filter so you can create slow shutter speed effects in your images. With Live ND, you can see the effects through the viewfinder and on the LCD monitor.

read less

MPN: V210041BE000

Barcode: 4545350056063

OM System OM-1 Mark II Mirrorless Camera with 12-40mm MkII F2.8 lens Specification


  • Lens Mount: Micro Four Thirds
  • Sensor Resolution: Actual: 22.9 Megapixel / Effective: 20.4 Megapixel
  • Image Sensor: 17.4 x 13 mm (Four Thirds) BSI MOS
  • Sensor Crop (35mm Equivalent): Crop Factor: 2x
  • Image Stabilisation: Sensor-Shift, 5-Axis
  • Built-In ND Filter: No
  • Capture Type: Stills & Video

Exposure Control

  • Shutter Type: Mechanical Focal Plane Shutter and Electronic Rolling Shutter
  • Shutter Speed, Mechanical Shutter: 1/8000 to 60 Seconds
  • Shutter Speed, Electronic Shutter: 1/32000 to 60 Seconds
  • Electronic Front Curtain Shutter: 1/320 to 60 Seconds
  • ISO Sensitivity Range, Photo/Video: 200 to 25,600 in Manual, Auto Mode (Extended: 80 to 102,400)
  • Metering Method: Centre-Weighted Average, Highlight, Multi-Zone, Spot
  • Precise Scan Rate Control: Yes
  • Exposure Modes: Aperture Priority, Manual, Program, Shutter Priority
  • Exposure Compensation: -5 to +5 EV (1/3, 1/2, 1 EV Steps)
  • Metering Range: -2 to 20 EV
  • White Balance: 2000 to 14,000K / Presets: AWB, Custom, Flash, Fluorescent, Overcast, Shade, Sunlight, Tungsten, Underwater
  • Continuous Shooting: Up to 120 fps
  • Interval Recording: Yes


  • Media/Memory Card Slot: Dual Slot: SD/SDHC/SDXC (UHS-II)
  • Video I/O: 1x Micro-HDMI (Unspecified Signal) Output
  • Audio I/O: 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
  • 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
  • Power I/O: 1x USB-C Input/Output
  • Other I/O: 1x USB-C Data Input/Output (Shared with Power Input)
  • 1x PC Sync Socket
  • Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth 4.2
  • Mobile App Compatible: Yes: Android & iOS
  • Global Positioning (GPS, GLONASS, etc.): GPS (Via Connected Smartphone)


  • Display Size: 3"
  • Resolution: 1,620,000 Dot
  • Display Type: Articulating Touchscreen LCD


  • Type: Built-In Electronic (OLED)
  • Resolution: 5,760,000 Dot
  • Eye Point: 21 mm
  • Coverage: 100%
  • Magnification: Approx. 1.48x
  • Dioptre Adjustment: -4 to +2


  • Focus Type: Auto and Manual Focus
  • Focus Mode: Continuous-Servo AF, Manual Focus, Single-Servo AF
  • Autofocus Points: Photo, Video / Phase Detection: 1053


  • Built-In Flash/Light: No
  • Flash Modes: Fill In, Manual, Off, Red-Eye Reduction, Slow Sync
  • Maximum Sync Speed: 1/250 Second
  • Flash Compensation: -3 to +3 EV (1/3, 1/2, 1 EV Steps)
  • Dedicated Flash System: TTL
  • External Flash Connection: Shoe Mount, PC Terminal


  • Operating Temperature: -10 to 40°C
  • Storage Temperature: -20 to 60°C
  • Operating Humidity: 30 to 90%
  • Storage Humidity: 10 to 90%


  • Material of Construction: Magnesium Alloy
  • Power: BLX-1 Lithium-Ion Battery
  • Dimensions, body only: 13.48W x 9.16H x 7.27D cm
  • Weight, body only: 511 g

What's in the Box?

  • 1 x OM SYSTEM OM-1 Mark II Digital Camera with 12-40mm MkII F2.8 lens
  • 1 x CB-USB13 USB Cable
  • 1 x Shoulder Strap
  • 1 x BLX-1 Li-ion Battery
  • Instruction manual
  • Warranty card

MPN: V210041BE000

Barcode: 4545350056063
