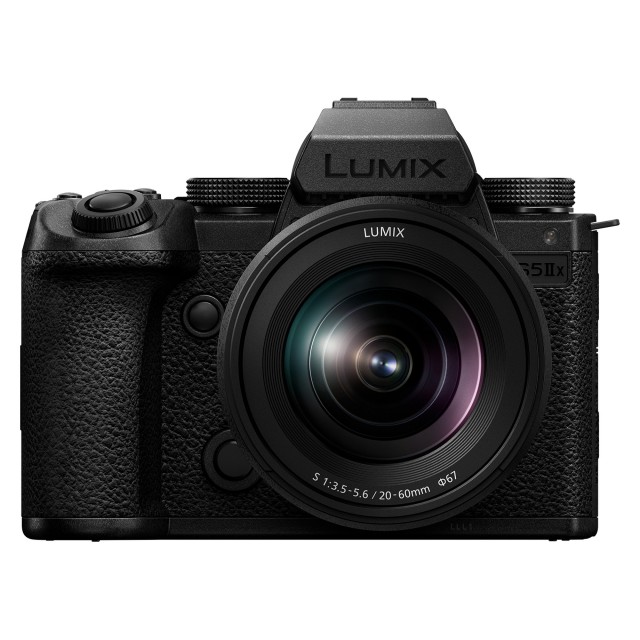

Lumix Panasonic Lumix S5IIX Mirrorless Camera with 20-60 lens
Enlarge

Product Description

Panasonic Lumix S5IIX Mirrorless Camera with 20-60 lens With a new imaging engine developed within the L2 Technology partnership formed by LEICA and LUMIX, and a new 24-megapixel sensor, the LUMIX S5II and S5IIX are the first LUMIX cameras to offer Hybrid Phase Detection Auto-Focus (PDAF). The cameras... read more

Panasonic Lumix S5IIX Mirrorless Camera with 20-60 lens

With a new imaging engine developed within the LTechnology partnership formed by LEICA and LUMIX, and a new 24-megapixel sensor, the LUMIX S5II and S5IIX are the first LUMIX cameras to offer Hybrid Phase Detection Auto-Focus (PDAF).

The cameras use a new Phase Hybrid AF system combining PDAF with Contrast Detect AF. Fast and dependable and providing 779-area metering, the new system is able to detect target subjects in difficult conditions such as low light and backlighting and, once locked on, will remain tracking them even with other moving objects in the frame.

Continuous AF during zooming and AF micro adjustment are also available.

A wealth of video functions and recording options

The new engine gives the LUMIX S5IIX and S5II video recording capabilities including internal 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps, while a new low-profile heat management system allows for unlimited recording times without increasing the size of the camera body. The cameras also support HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.

The LUMIX S5IIX is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording. Additionally, the S5iiX can support Apple Pro Res RAW video output to Atomos. It also supports wired and wireless IP streaming and USB tethering.

A range of picture profiles including 14+ stop V-Log/V-Gamut are available on both models, as well as a new REAL TIME LUT function enabling colour grading LUTs to be uploaded to an SD card and directly applied in-camera rather than in post-production.

In response to requests from professional users, functions such as Waveform Monitor, Vector Scope and Zebra Pattern have been added, as well as features such as System Frequency (24.00Hz) and Synchro Scan.

Clear and realistic 48kHz/24-bit audio can be recorded by the built-in or an external microphone, while high-resolution 96kHz/24-bit recording is possible with external and XLR microphones.

Professional photo and video performance

Thanks to host of new and improved features, the LUMIX S5IIX and S5II are able to deliver truly astounding photo and video performance, including high-speed burst shooting at up to 9fps with mechanical shutter and 30fps with electronic shutter (capable of capturing up to 300 images), a 96-megapixel High Resolution Mode (JPEG/RAW) and Dual Native ISO sensitivity, which minimises noise and allows a maximum ISO of 51200 (204800 when Extended).

The LUMIX S5IIX and S5II also boast an upgraded image stabilisation system to greatly enhance handheld shooting in a wide range of conditions and situations. The new Active I.S. provides highly stable video recording by optimising horizontal, vertical and rotational correction. Compensating as much as 200% compared to conventional stabilisation, Active I.S. is especially effective in traditionally challenging conditions for handheld shooting, such as using telephoto lenses or filming while walking.

Superior handling and options for ‘one-person crew’ operation

The LUMIX S5IIX and S5II offer a highly refined shooting experience, allowing creators to achieve excellent results with minimal workflow thanks to features such as AWB Lock, MF Assist (available for both video and photo shooting) and a new Live Crop function, which records video footage using the entire sensor surface enabling the user to crop 4K and FHD images out afterwards.

Usability is further enhanced with the new easy-to-operate 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.

Class-leading reliability and connectivity

The cameras are built to robust standards for in-field use, with magnesium alloy die-cast front and rear frames and a splash- and dust-resistant construction.

Connectivity has been improved over the LUMIX S5, with the LUMIX S5IIX and S5II each featuring a full-size HDMI Type A terminal and high-speed USB 3.2 Gen 2, plus a cable lock holder to prevent unwanted unplugging. Wireless connectivity has been improved too, with Wi-Fi 5GHz joining 2.4GHz to provide fast, stable communication with smartphones and tablets.

Dual card slots (both UHS-II) support Relay Recording, Backup Recording and Allocation Recording and the 2200mAh high-capacity battery can be recharged via AC or USB.

Future firmware update and LUMIX Pro program

Users will be able to further enhance LUMIX S5IIX and S5II performance through a future firmware update, which will add a host of functions including RAW data output and Live View Composite.

read less

MPN: DC-S5M2XKE

Barcode: 5025232951857

Panasonic Lumix S5IIX Mirrorless Camera with 20-60 lens Specification

Imaging

Lens Mount Leica L
Sensor Resolution Actual: 25.28 Megapixel
Effective: 24.2 Megapixel (6000 x 4000)
Sensor Type 35.6 x 23.8 mm (Full-Frame) CMOS
Image Stabilization Sensor-Shift, 5-Axis
Capture Type Stills & Video

Exposure Control

Shutter Type Electronic Shutter, Mechanical Focal Plane Shutter
Shutter Speed Mechanical Shutter
1/8000 to 60 Seconds
Up to 30 Minutes in Bulb Mode
Electronic Front Curtain Shutter
1/2000 to 60 Seconds
Up to 30 Minutes in Bulb Mode
Electronic Shutter
1/8000 to 60 Seconds
Up to 60 Seconds in Bulb Mode
Bulb/Time Mode Bulb Mode, Time Mode
ISO Sensitivity Photo/Video
100 to 51,200 (Extended: 50 to 204,800)
Metering Method Center-Weighted Average, Highlight Weighted, Multiple, Spot
Exposure Modes Aperture Priority, Auto, Manual, Program, Shutter Priority
Exposure Compensation -5 to +5 EV (1/3 EV Steps)
Metering Range 0 to 18 EV
White Balance 2500 to 10,000K
Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
Continuous Shooting Mechanical Shutter
Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
Electronic Shutter
Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG)
Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
Interval Recording Yes
Self-Timer 2/10-Second Delay

Still Image Capture

Image Sizes 3:2
96 MP (12,000 x 8000) *Via In-Camera Pixel-Shift
96 MP (8496 x 5664) *Via In-Camera Pixel-Shift
24.2 MP (6000 x 4000)
24.2 MP (4272 x 2848)
24.2 MP (3024 x 2016)
4:3
96 MP (10,656 x 8000) *Via In-Camera Pixel-Shift
96 MP (7552 x 5664) *Via In-Camera Pixel-Shift
24.2 MP (5328 x 4000)
24.2 MP (3792 x 2848)
24.2 MP (2688 x 2016)
16:9
96 MP (12,000 x 6736) *Via In-Camera Pixel-Shift
96 MP (8496 x 4784) *Via In-Camera Pixel-Shift
24.2 MP (6000 x 3368)
24.2 MP (4272 x 2400)
24.2 MP (3024 x 1704)
1:1
96 MP (8000 x 8000) *Via In-Camera Pixel-Shift
96 MP (5664 x 5664) *Via In-Camera Pixel-Shift
24.2 MP (4000 x 4000)
24.2 MP (2848 x 2848)
24.2 MP (2016 x 2016)
65:24
24.2 MP (6000 x 2208)
2:1
24.2 MP (6000 x 3000)
Aspect Ratio 1:1, 2:1, 3:2, 4:3, 16:9, 65:24
Image File Format JPEG, Raw
Bit Depth 14-Bit

Video Capture

Internal Recording Modes H.264/H.265/MOV/MP4/ProRes 4:2:2/4:2:0 8/10-Bit
5952 x 3968 at 23.98/24.00/25/29.97 fps [200 Mb/s]
5952 x 3136 at 23.98/24.00/25/29.97 fps [200 Mb/s]
5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s]
4096 x 2160 at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s]
3840 x 2160 at 23.98/24.00/25/29.97 fps [72 to 400 Mb/s]
1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/100/ fps [20 to 454 Mb/s]
External Recording Modes 12-Bit via HDMI
5888 x 3312 at 23.98/25/29.97 fps
10-Bit via USB
5776 x 3056 at 23.98/24.00/25/29.97 fps
4096 x 2160 at 23.98/24.00/25/29.97 fps
1920 x 1080 at 24.00/25/50 fps
Sensor Crop Modes Super35 / APS-C
4096 x 2160
3840 x 2160
3328 x 2496
1920 x 1080
Fast-/Slow-Motion Support Yes
Gamma Curve Panasonic V-Gamut, V-Log
Recording Limit None
Broadcast Output NTSC/PAL
IP Streaming RTP, RTSP
3840 x 2160 to 1280 x 720 at 25p, 29.97p, 50p, 59.94p (4.0 to 25.00 Mb/s)
Built-In Microphone Type Stereo
Audio Recording MOV: 2-Channel 24-Bit 48 kHz LPCM Audio
MP4: 2-Channel 16-Bit 48 kHz AAC Audio

Interface

Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-II)
Video I/O 1 x HDMI Output
Audio I/O 1 x 3.5 mm TRRS Headphone/Mic Headphone Output
1 x 3.5 mm TRRS Headphone/Mic Microphone Input
Power I/O 1 x USB-C Input/Output
Other I/O 1 x USB-C Data Input/Output (Shared with Power Input)
Wireless 2.4 / 5 GHz Wi-Fi (802.11b/g), Wi-Fi 5 (802.11ac), Bluetooth 5.0
Mobile App Compatible Yes: Android & iOS
App Name: Lumix Sync
Functionality: Access Stored Files, Firmware Update, Remote Control
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.) None

Monitor

Size 3 inches
Resolution 1,840,000 Dot
Display Type Free-Angle Tilting Touchscreen LCD

Viewfinder

Type Built-In Electronic (OLED)
Resolution 3,680,000 Dot
Eye Point 21 mm
Coverage 100%
Magnification Approx. 0.78x
Diopter Adjustment -4 to +2

Focus

Focus Type Auto and Manual Focus
Focus Mode Continuous-Servo AF, Manual Focus, Single-Servo AF
Autofocus Points Photo, Video
Contrast Detection, Phase Detection: 779
Autofocus Sensitivity -6 to +18 EV

Flash

Built-In Flash No
Flash Modes Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
Maximum Sync Speed 1/250 Second
Flash Compensation -3 to +3 EV (1/3 EV Steps)
Dedicated Flash System TTL
External Flash Connection Hot Shoe

Environmental

Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 80%

General

Battery Type 1 x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 370 Shots)
Tripod Mounting Thread 1 x 1/4 inch female thread
Accessory Mount 1 x Hot Shoe Mount on Camera Body
Material of Construction Magnesium Alloy
Dimensions (W x H x D) 13.44 x 10.24 x 9.02 cm (Without Protrusions)
Weight 658 g (Body Only)
744 g (With Recording Media)



What's in the Box?

  • Panasonic Lumix S5IIX Mirrorless Camera with 20-60 lens
  • Lithium-Ion Battery
  • Body Cap
  • Front Lens Cap
  • Rear Lens Cap
  • Hot Shoe Cover
  • Cover for the Battery Grip Connector
  • Shoulder Strap
  • AC Adaptor
  • USB Connection Cable (A-C)

MPN: DC-S5M2XKE

Barcode: 5025232951857
