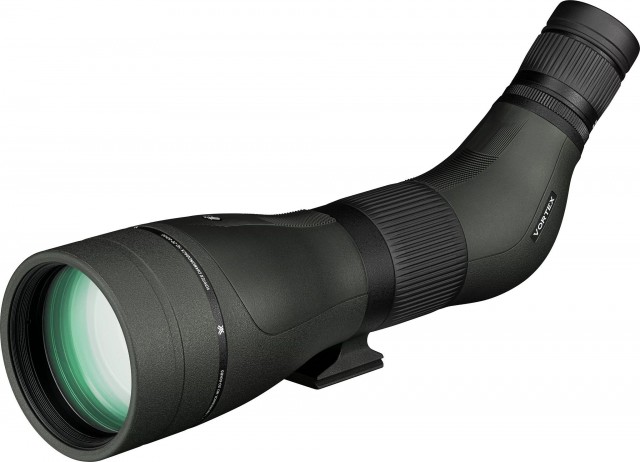

Vortex Diamondback HD 20-60x85 Angled Scope
Enlarge

Product Description

Vortex Diamondback HD 20-60x85 Angled Scope With the increased objective lens diameters and updated magnification options, the new Diamondback® HD spotting scopes strike an excellent balance between optical quality, size, weight, and packability. Optical Features HD Optical System Optimized... read more

Vortex Diamondback HD 20-60x85 Angled Scope

With the increased objective lens diameters and updated magnification options, the new Diamondback® HD spotting scopes strike an excellent balance between optical quality, size, weight, and packability.

Optical Features

  • HD Optical System Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.
  • Fully Multi-Coated Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.

Construction Features

  • ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
  • Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
  • Shockproof Rugged construction withstands recoil and impact.
  • Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
  • Rubber Armor Provides a secure, non-slip grip, and durable external protection.

Convenience Features

  • Adjustable Eyecups Twist up and down for comfortable viewing with or without eyeglasses.
  • Helical Focus Allows for fast and fine adjustments.
  • Arca-Swiss Compatible Directly mounts to Arca-Swiss tripod heads without the use of additional plates. Also accepts 1/4-20 threads for use on alternate style tripod heads.
  • Tripod Adaptable Allowing use on a tripod or car window mount. Tripod adapter required.
  • Rotating Tripod Ring Allows rotation of the eyepiece to a sideways position, providing adjustable viewing angles.
  • Built-in Sunshade Reduces glare and shields the objective lens from raindrops and snow.

Vortex Lifetime Warranty

If you ever have a problem, no matter the cause Vortex promise to take care of you. Learn More

read less

MPN: DS-85A

Barcode: 843829112901

Vortex Diamondback HD 20-60x85 Angled Scope Specification

  • Magnification: 20-60x
  • Objective Lens Diameter: 85 mm
  • Linear Field of View: 108-60 ft/1000 yds
  • Angular Field of View: 2.1-1.1 degrees
  • Close Focus: 24.6 feet
  • Eye Relief: 20.3-18.3 mm
  • Exit Pupil: 4.25-1.41 mm
  • Length: 40 cm
  • Weight: 1738 g

What's in the Box?

  • Vortex Diamondback HD 20-60x85 Angled Scope
  • Neoprene cover
  • Tethered objective lens cap
  • Tethered ocular lens cap
  • Lens cloth

MPN: DS-85A

Barcode: 843829112901

Finance

Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest gear from Castle Cameras today.

There are various options available, including (subject to promotion) interest free credit.  If finance options are available, they will show as 'Finance Available' directly under the price.  Click on that grey button and it will show you all the finance options available on that product and the monthly instalments.

Find more details about our Finance terms here.  If you need any further information, please call our team on 01202 526606 or Contact us.

Vortex Diamondback HD 20-60x85 Angled Scope

£539.00

No stock. On order with UK Distributor. Delivery expected by 29 Feb

Vortex Unconditional Lifetime warranty

+ ACCESSORIES
Lenspen Original NLP-1 White
£9.90
WAS £11.90
YOU SAVE £2.00
Product Code: BV21273
Slik 504QF II Video Complete
£149.00
WAS £179.00
YOU SAVE £30.00
Product Code: CH22544
Velbon Ultra Stick L60
£37.90
WAS £49.90
YOU SAVE £12.00
Product Code: EC26885
Zeiss lens wipes, x24
Zeiss lens wipes, x24
£5.00
Product Code: EG27164
Vortex Car Window Mount
Vortex Car Window Mount
£42.00
Product Code: ET27812
Lenspen Original offer
£11.90  £4.90

Product Summary

  • 20-60x Zoom range.
  • Armortek lens coatings.
  • Superior Argon gas purging to keep out the British weather.
  • Close focus to 7.5m.
  • Weighs 1.73kg.
  • Rotating tripod mount.
  • Built in lens hood.
  • The Diamondback ED optics guarantee a bright image throughout the magnification range.
  • Rugged construction stands up to rough use in the field.
  • Neoprene stay-on case for added protection.
