Product Description

Zhiyun Crane M3S Standard Gimbal The Crane M3 S offers 360° pan, 305 tilt, and 314° roll rotation with optimised axis locking.This gimbal is great for travelling with and easy to control your settings with the 1.22 inch colour touchscreen, onboard controls, and a bluetooth powered wireless... read more

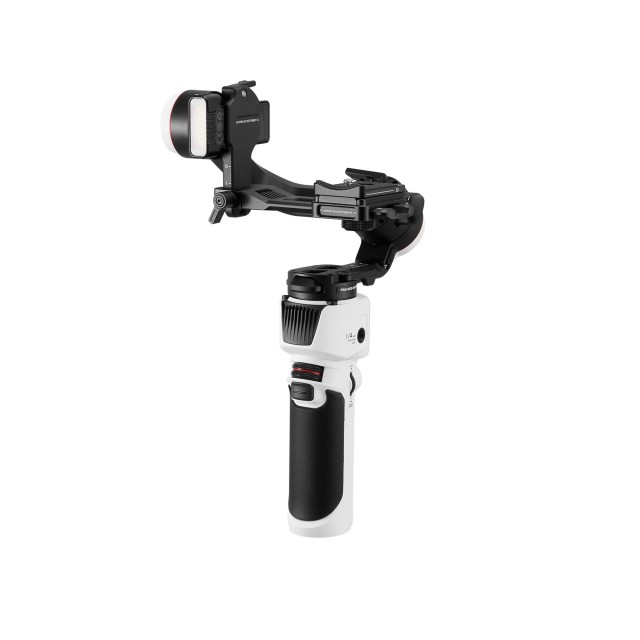

Zhiyun Crane M3S Standard Gimbal

The Crane M3 S offers 360° pan, 305 tilt, and 314° roll rotation with optimised axis locking.This gimbal is great for travelling with and easy to control your settings with the 1.22 inch colour touchscreen, onboard controls, and a bluetooth powered wireless shutter. A quick release system with two forms of adjustment allows you to access your camera's battery effortlessly without needing to rebalance your rig. The CRANE-M3 S also features a built-in fill light with a 1000 lux output and adjustable colour temperature.

Compact Form Factor, Improved Load Capacity

With the CRANE-M3 S you can still use your smartphone with the included phone clamp or action camera with a separately available mount,

Quick Release System

An improved quick release system offers two modes of adjustment. Easily slide your camera on and off the gimbal to mount new accessories or replace its battery without needing to rebalance the rig.

Bluetooth 5.0 Shutter Control

While the included camera control cables offer the option for wired shutter control, avoid complicated cable runs by using the embedded Bluetooth 5.0 shutter control. Wirelessly control your camera's shutter and toggle recording via the onboard controls and touchscreen.

Brighter Fill Light

Zhiyun's Lumen Amplifier technology has created a powerful light source built right into your gimbal's construction. The fill light has a brightness of 1000 lux and adjustable dual colour temperature from 2700 to 5500K.

Creative Operation Modes

Selectable from your 1.22 inch touchscreen, toggle between four creative filming modes for more dynamic vlog content. Choose between panorama, time-lapse, mono-lapse, and vortex.

Shoot Longer

A built-in 1150mAh battery with a runtime of 7.5 hours allows you to keep shooting a full day of activity. The USB-C charging port supports fast charging to get you back up and running in just 2 hours. You can also charge the gimbal while it's in use.

read less

MPN: 1017687566

Barcode: 6970194087566

Zhiyun Crane M3S Standard Gimbal Specification

Grip Design

Single Handgrip (Slanted)

Gimbal

Number of Axes	3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
Rotation Range	Mechanical Range Yaw (Pan): 360° Pitch (Tilt): 305° Roll: 314° Controllable Range Yaw (Pan): 360° Unlimited Pitch (Tilt): 205° (-45 to 160°) Roll: 60° (-30 to 30°)

Compatibility

Camera Control	On Compatible Models
Camera Mounting Screw	1/4inch Male thread

Connectivity

Inputs/Outputs	USB-C (Power) Input USB-C (Power / Control) Output
Wireless Frequency	2.4 GHz
Wireless Protocol	Bluetooth 5.0, Wi-Fi (Unspecified Type)
Mobile App Compatible	Yes

Battery

Battery Type	1 x Built-In
Battery Capacity	1150 mAh
Battery Runtime	7.5 Hours
Battery Charging Time	2 Hours

Power

Operating Voltage	9.6 to 12.6 VDC
Operating Current	135 to 4000 mA

Environmental

Operating Temperature

-10 to 50°C

General

Display Type	Fixed Touchscreen OLED
Mounting	1/4 inch Female thread
Dimensions	184.2 x 163.5 x 74.5 mm (Folded) 265.6 x 152.2 x 141.2 mm
Weight	1705 g (with Camera Plate)

MPN: 1017687566

Barcode: 6970194087566
