Product Description

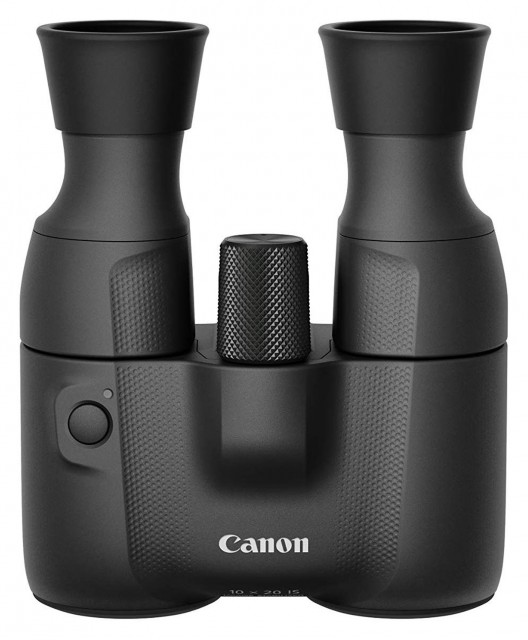

Canon 10x20 IS Binoculars 10x magnification, precision optics, improved stabilisation With 10x magnification and image stabilisation for a super-steady view, these compact and lightweight binoculars are small in size but pack a powerful punch. Compact and lightweight at 430g 10x magnification Lens... read more

MPN: 3640C005

Barcode: 4549292148299


Optical Characteristics

  • Binocular type: Prism
  • Magnification: 10x
  • Objective lens effective diameter: 20mm
  • Filter Size: Not compatible
  • Real Field of View: 5.3°
  • Apparent Field of View: 49.5° 1
  • Field of View at 1000m: 93m

Optical Construction

  • Objective lens construction: 3 elements in 2 groups
  • Eyepiece lens construction: 4 elements in 3 groups
  • Doublet Field Flattener: Yes
  • Exit Pupil diameter: 2.0mm
  • Eye relief: 13.5mm
  • Prism type: Porro I prism
  • Lens coating: Super Spectra coating

Focusing and dioptric correction

  • Focusing system: Object lens movement
  • Focusing method: Manual focus
  • Dioptric correction method: Dioptric correction ring
  • Dioptric correction range: ±9.2m-1 (diopters)
  • Closest focusing distance (approx.): 2m

Image Stabilizer

  • Image Stabilizer system: Lens shift
  • Correction angle: +/- 0.9°
  • Shake detection system: Gyro sensor
  • Image Stabilizer activation: Push button switch (5min. continuous operation)

Power Source

  • 1x CR123A lithium battery
  • Battery life: +23°C: approx 12 hours / -10°C: approx 8 hours (using alkaline batteries) 2
  • Battery Level Indicator: Yes (LED)

Physical Features

  • Operating conditions: -10°C to 40°C, 90% humidity
  • Dimensions: 11.8W x 14.2L x 6.9H cm
  • Weight (Excluding battery): 430g

Apparent field of view based on the ISO 14132-1:2002 standard / Based on Canon testing standards

MPN: 3640C005

Barcode: 4549292148299

Test Drive

Test drive for FREE for 48 hours including free delivery and collection >>click here>>

See all the products included in the Canon Test Drive here.


Spread the cost with finance on selected products. Make that dream purchase a reality and buy the latest and greatest from Castle Cameras today. There are various options available, including (subject to promotion) interest free credit. We are currently only offering finance through our Mail Order / On-line services. If you need any further information please call our team on 01202 526606 or e-mail

Canon 10x20 Image Stabiliser Binoculars

WAS £589.00
YOU SAVE £40.00

in stock Limited Stock

Product Code: EL27441

+ Recommended Binoculars & Scopes
Swarovski Cleaning set
Swarovski Cleaning set
Product Code: BH20359
Steiner Binocular Body Harness
WAS £37.90
YOU SAVE £5.00
Product Code: BJ20397
+ Recommended Camera Accessories
Panasonic CR123A
Panasonic CR123A
Product Code: AA16500
Steiner Binocular Body Harness
WAS £37.90
YOU SAVE £5.00
Product Code: BJ20397
+ Recommended Lens Accessories
Castle Lens cleaning cloth
Castle Lens cleaning cloth
Product Code: DW26425

Product Summary

£40.00 October Saving subject to availability

One year UK Warranty

  • 10x Magnification
  • Super Spectra Coatings for excellent high resolution viewing
  • Lens shift Image Stabilizer
  • 2m closest focus
  • Lightweight at only 430g
